LED All In One - Direct-view small pitch LED
What is COB LED Module
COB refers to Chip on Board, which means the LED lighting-emitting chips will be directly mounted on the PCB board precisely. The light-emitting LED chips are connected to the driver components on the board through special media with high protection ability. Although it sounds difficult to understand, simply put, COB LED display is to achieve 4K, even 8K, 16K large LED display screen better as it can break limitation of pixel pitch of SMD LEDs to achieve higher pixel density.Within the range from 0.5mm to 3.3mm, there are COB (Chip-on-Board) small pixel pitch products available with increments of 0.1mm.
A seamless Direct View LED All-in-One for a stunning visual experience
The Fine Pitch Direct View LED All In One combine the best quality LED technology on the market with a sophisticated Android based PC. This provides an integrated solution for most cases without the need for messy cables or additional devices.
PH0.9/1.25/1.53 HD LED All In One
High-Resolution Display
High-resolution LED All in One can display images, text, and videos in high definition. High-end PH0.9/1.2/1.5/1.6 /1.8/ 2 /2.5, it covers the mainstream pixel pitches on the market, meeting the display needs of various application scenes. It features high performance and good color rendering, can show a smooth and clear picture.
Standard size LED All in One
Modular design, it has no visual black seam in the splicing. LED All in One Near to LCD standard size 55″,65″,75″,86″,98″, come in an option of sizes from 110” to 175” to help create the perfect display. We can also customize your own size according to your content and space.
Easy Content Update
Edit the contents under the software through computer, laptop, mobile phone etc. Ability to update content remotely. Support text, animation, video, clock, temperature etc. Regular updates ensure your messaging remains fresh and appealing.

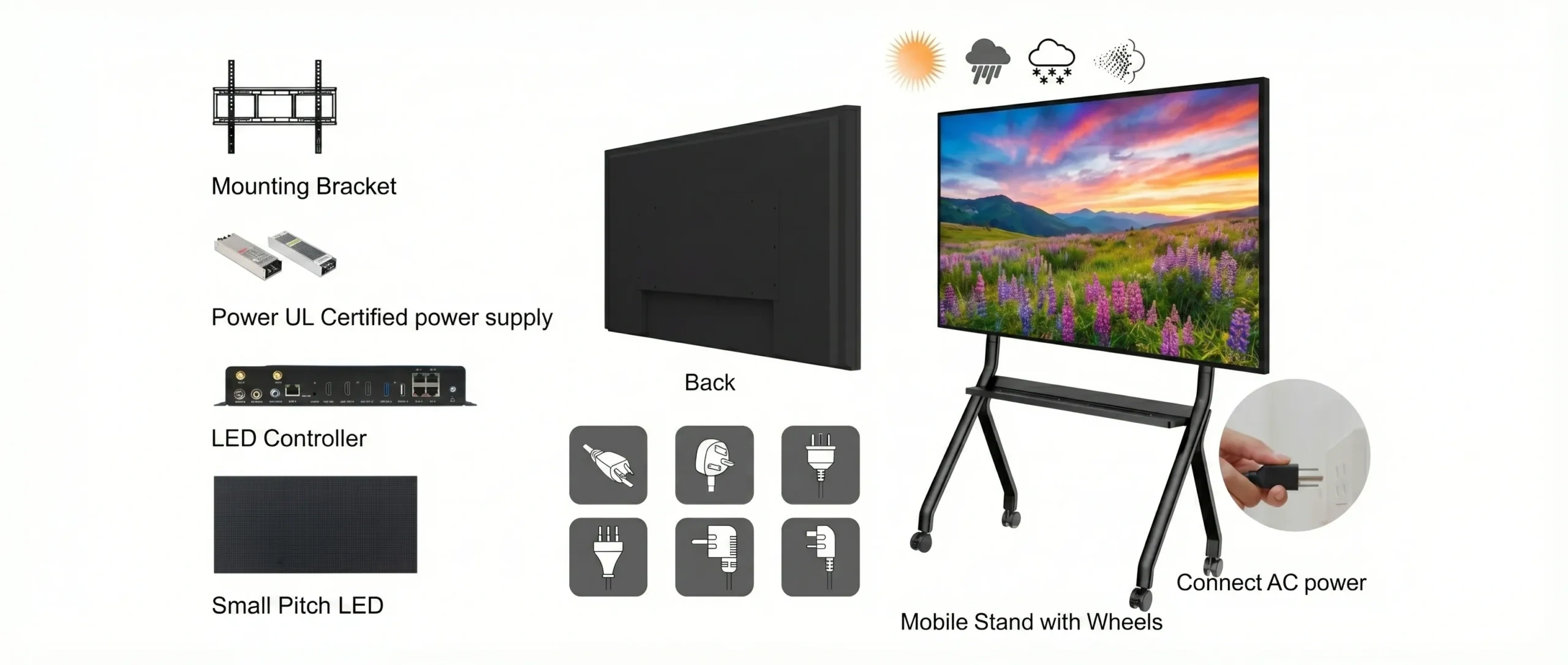

Mountable and Mobile Options
Wall Mount Full Motion Tilt Swivel LED Bracket offers a relatively simple design. It's lightweight but durable, and flexible enough to accommodate a wide range of screen sizes and weights up to 400lbs. The height adjustable ceiling hanging mount is the solution to your limited wall space.Height Adjustable moving Stand – The mobile display stand can adjust its height. It can be stationary or mobile according to your wishes.
Portable With Convenient Stands
Our LED All in One screen has stand with wheels. It's easier to move, making them ideal for use in multiple areas during the day and adapting to changing needs with ease. which would be a great choice for restaurants, hotels, cafe shops, etc.

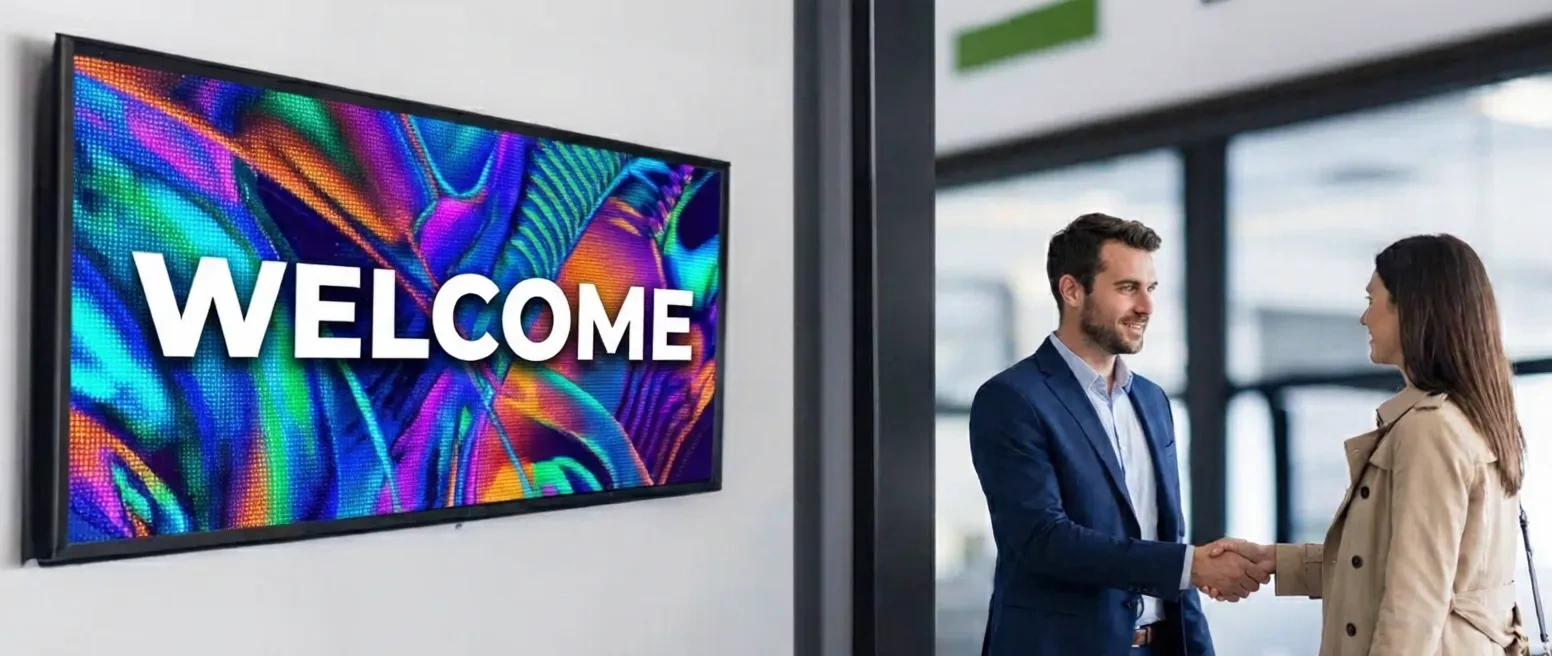

Versatile Applications
Ideal for various settings, it is often used for advertising and promotional purposes in high-traffic areas such as retail stores, exhibitions, and public places. The display is slim, lightweight, and portable, making it easy to install and move. High brightness and strong contrast allow everyone to see it clearly from a distance.
LED Standard Panel, LED All in One, Standard combination of Pixel pitch and size
Die-cast Aluminum cabinet info | Item | P0.93 | P1.25 | P1.56 |
Panel Dimension WxH | 600x337.5mm | 600x337.5mm | 600x337.5mm | |
Panel sze | 16:9 ( 27" ) | 16:9 ( 27" ) | 16:9 ( 27" ) | |
Panel resloution WxH | 640 x 360 | 480 x 270 | 384 x 216 | |
DV-LED Display standard size available | ||||
Item | P0.93 | P1.25 | P1.56 | |
Display kit size(# of panels WxH) | Display size WxH mm | Pixel WxH | Pixel WxH | Pixel WxH |
4 ( 2x2) 55" | 47x27.6" (120x67.5cm) | 1280x720 | 960x540 | 768x432 |
6 ( 3x2) 76" | 71x27.6" (180x67.5cm) | 1920x720 | 1440x540 | 1152x432 |
9 ( 3x3) 81" | 71x40" (180x101cm) | 1920x1080 FHD | 1440x810 | 1152x648 |
16 (4x4) 110" | 94.5x53" (240x135cm) | 2560x1440 2K | 1920x1080 FHD | 1536x864 |
25 (5x5) 136" | 118x66" (300x169cm) | 3200x1800 | 2400x1350 | 1920x1080 FHD |
36 (6x6) 163" | 142x80" (360x203cm) | 3840x2160 4K | 2880x1620 | 2304x1296 |
Technical specification
LED module parameter | |||
Pixel Pitch | P0.93 | P1.25 | P1.56 |
LED Encapsulation | Flip chip COB package | Flip chip COB package | Flip chip COB package |
Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B |
Resolution (WxH) | 160*180 | 120*135 | 96*108 |
Module Size (WxH mm） | 150*168.75*2 | 150*168.75*2 | 150*168.75*2 |
Scanning mode | 1/54 | 1/60 | 1/48 |
Scheme design | cathode | anode | anode |
Driving mode | Constant current drive | Constant current drive | Constant current drive |
Panel parameter | |||
Panel Dimension WxHxD | 600x337.5x78 | 600x337.5x78 | 600x337.5x78 |
Panel sze | 16:9 ( 27" ) | 16:9 ( 27" ) | 16:9 ( 27" ) |
Panel resloution WxH | 640 x 360 | 480 x 270 | 384 x 216 |
Cabinet material | Die-cast Aluminum cabinet | ||
Maintenance | Front access | ||
Cabinet weight kg | 6 | ||
Operating voltage（V） | 4.2 - 4.6V | ||
Frame rate(Hz) | 50 / 60Hz | ||
Brightness(cd/m2) | 0-1000 adjustable | ||
Refresh rate（Hz） | ≧3840 adjustable | ||
Contrast | Static contrast 10000:1 | ||
Horizontal perspective | ≥160° | ||
Vertical perspective | ≥160° | ||
Input Voltage | AC110V or AC220V | ||
Conventional power (W/㎡) | 400-600W | ||
Typical value of chip life（H） | ≥100000 | ||
Operating Temperature | -10~40 ℃ | ||
Operating Humidity | 10%~90% | ||
Build in system | Windows or Android OS Optional | ||
Touch System | Remote control /Touch panel（optional) | ||
Interface | HDMI×3, 3.5×1,USB3.0×1, USB2.0×1,RJ45×1 | ||
Video Input | HDMI IN x 2 | ||
Audio Output | HDMI Out x 1, 3.5mm Earphone x 1 | ||
Audio System | Built-in 2x15W speakers | ||
Data Input/Output | USB 3.0 x1, USB 2.0 x3 | ||
Connectivity | WLAN x 1, Wi-Fi | ||
Warranty | 3 years Limited Warranty | ||
COB LED VS LCD
COB LED is specially designed with multiple LED chips tightly attached to one surface, creating more uniform light and more energy saving. This results in high brightness, vivid color and long life. Highly energy-efficient, especially for high brightness indoor applications.
LCDs require an external light source to make the liquid crystals work that means they are less bright, limited viewing angles and slow response time.
LCD screens are suitable for office applications, home entertainment, where color and image details need to be optimized. If you need high brightness and good performance in bright environments, COB LED screens will be a better choice.
COB LEDs are generally more expensive due to their advanced technology, but their performance and reliability is good choice for premium applications.
Feature Description of COB LED all in one
-Highly durable, protection against moisture, oxidation, dust, UV, and impacts
-COB technology delivers vibrant, high-contrast images with excellent color reproduction due to high packaging density and uniformity.
-Provides a wider viewing angle (175°–180°) with minimal color or brightness distortion
High Brightness, brightness sensor
High refresh rate 3840Hz
Easy operate interface, multi-installation
One-button start, wireless screen projection, USB plug and play;
Simple and generous appearance, rich external interfaces
Lightweight high strength aluminum design, seamless border less
Cloud based Multi-screen control
1, Our LED systems can be controlled and programmed via Cloud.
2, Users can access the Internet through the management computer (PC) and mobile APP, log in to their own account, and can manage the display screen centrally and remotely.
3, For remote locations without an internet connection, we can help build cloud for hundreds of led display with intelligent group management system.
4,All programs for all led display could be uploaded and changed at the same time via cloud. It's totally wireless and remote.
