Outdoor LED Customize
LED Sign & Light Box /LED Pylon Sign / Monument LED Sign / LED Totem Sign
Smaller sizes for outside of churches, schools, and businesses. Larger sizes for billboards, malls,and bigger venues, Church、School、Business 、Municipal 、Civic 、Military 、Retail、Entertainment Venues、Sports stadiums
LED Displays offers an industry-leading range of SMD outdoor display products in pixel pitch from 2.5 mm to10 mm, allowing for crisp, clear imagery and a widened viewing experience. In addition to a range of pixel densities, we offer assorted panel sizes, various cabinet types, and other custom-engineered solutions to fit any application.
Applications for LED display products include commercial and other out-of-home, corporate-branded building facades, outdoor and semi-outdoor entertainment venues, sports and live-event displays, schools, churches, malls, pole-mounted advertising, billboards, destination locations LED Displays, and much more.
LED SIGN Standard combination of Pixel pitch and size
| LED height | LED Width ft | Pixel Pitch | Item No. | Pixel(dots) HxW | Usage |
| 2.1ft H | 4.2ft | P2.5/3.076/4/5 | RGB-44P | 64×128 | Small size for monument sign |
| 5.25ft | RGB-45P | 64×160 | |||
| 6.3ft | RGB-46P | 64×192 | |||
| 2.62ft H | 5.26ft | P2.5/3.076/4/5 | RGB-55P | 80×160 | |
| 6.3ft | RGB-56P | 80×192 | |||
| 3.2ftH | 5.26ft | P3.076/4/5/6.67 | RGB-65P | 96×160 | Size for monument or low pylon sign |
| 6.3ft | RGB-66P | 96×192 | |||
| 7.35ft | RGB-67P | 96×224 | |||
| 8.4ft | RGB-68P | 96×256 | |||
| 9.45ft | RGB-69P | 96×288 | |||
| 11.6ft | RGB-611P | 96×352 | |||
| 3.67ftH | 6.3ft | P4/5/6.67/8/10 | RGB-76P | 112×192 | Size for any business |
| 7.35ft | RGB-77P | 112×224 | |||
| 8.4ft | RGB-78P | 112×256 | |||
| 9.45ft | RGB-79P | 112×288 | |||
| 4.2ft H | 6.3ft | P5/6.67/8/10 | RGB-86P | 128×192 | Size for any business/ Wall sign |
| 7.35ft | RGB-87P | 128×224 | |||
| 8.4ft | RGB-88P | 128×256 | |||
| 4.72ft H | 6.3ft | P6.67/8/10 | RGB-96P | 144×192 | |
| 7.35ft | RGB-97P | 144×224 | |||
| 8.4ft | RGB-98P | 144×256 | |||
| 9.45ft | RGB-99P | 144×288 | |||
| 5.25ft H | 6.3ft | P8/10 | RGB-106P | 160×192 | |
| 7.37ft | RGB-107P | 160×224 | |||
| 10.5ft | RGB-1010P | 160×320 | |||
| 5.77ft H | 7.37ft | P8/10 | RGB-117P | 176×224 | Large size for Pylon sign |
| 9.45ft | RGB-119P | 176×288 | |||
| 6.82ft H | 10.5ft | P10 | RGB-1310P | 208×320 | |
| 7.87ft H | 12.6ft | P10 | RGB-1512P | 240×384 | Very large size for Billboard display |
| 8.92ft H | 14.7ft | P10 | RGB-1714P | 272×448 | |
| 10.5ft H | 16.8ft | P10 | RGB-2016P | 320×512 | |
| 12.07ft H | 18.9ft | P10 | RGB-2318P | 368×576 | |
| 13.12ft H | 21ft | P10 | RGB-2520P | 400×640 |
Dual-sided Display

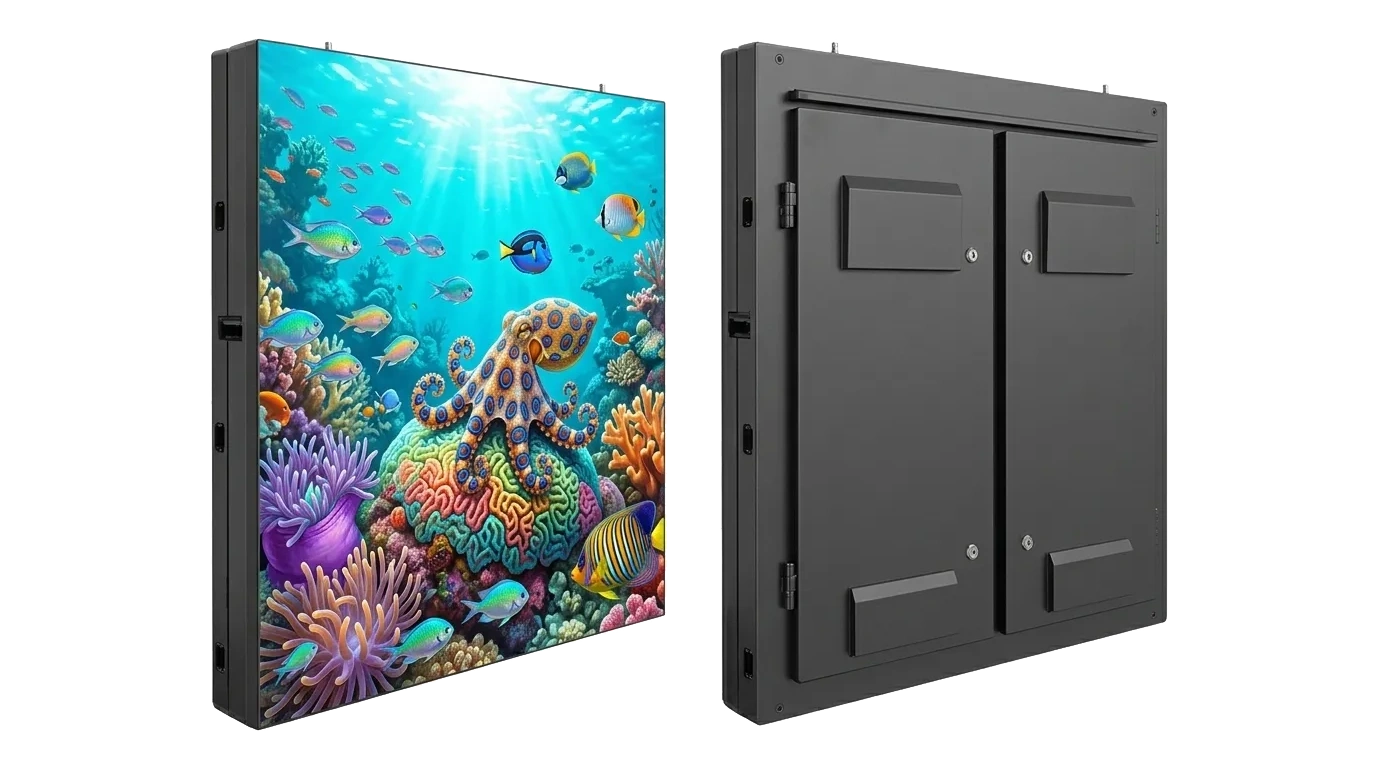

Rear Maintenance LED Display

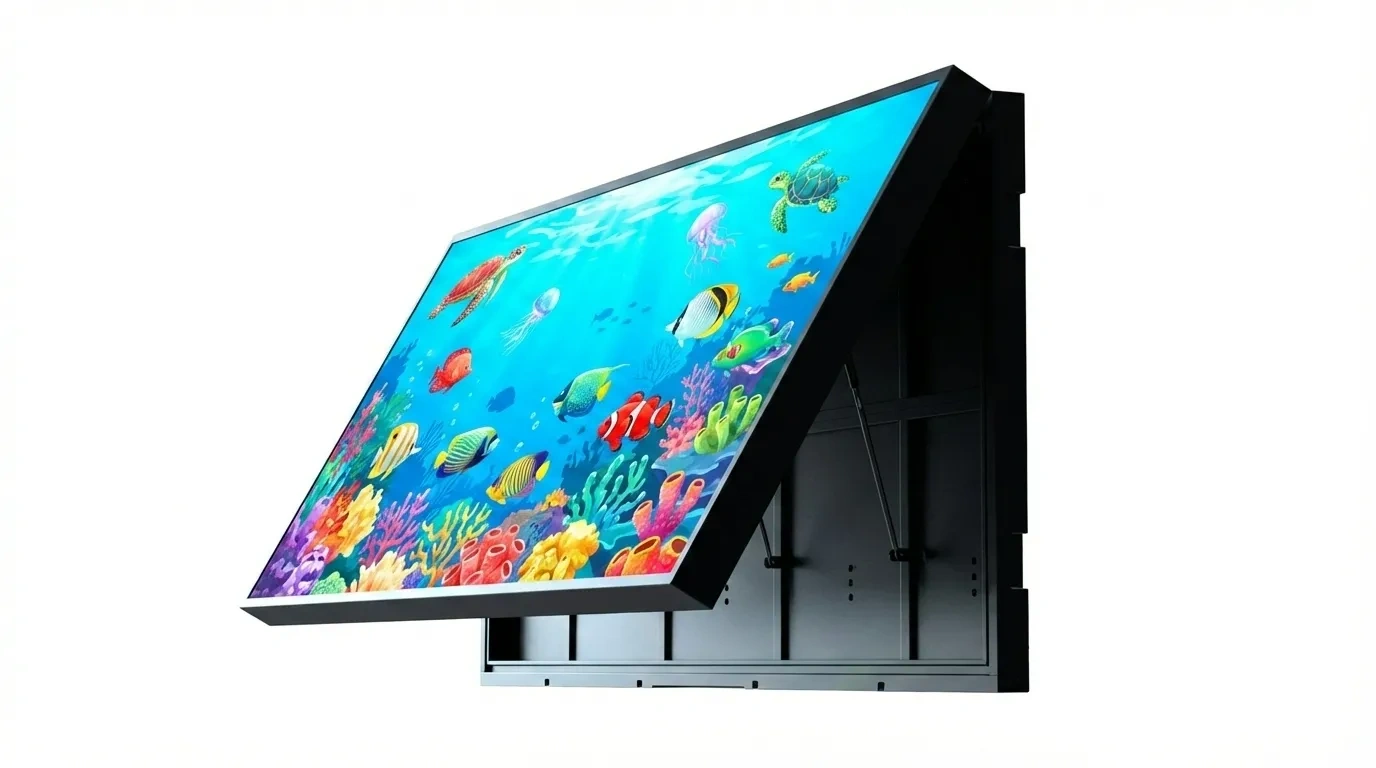

LED Display Front Maintain

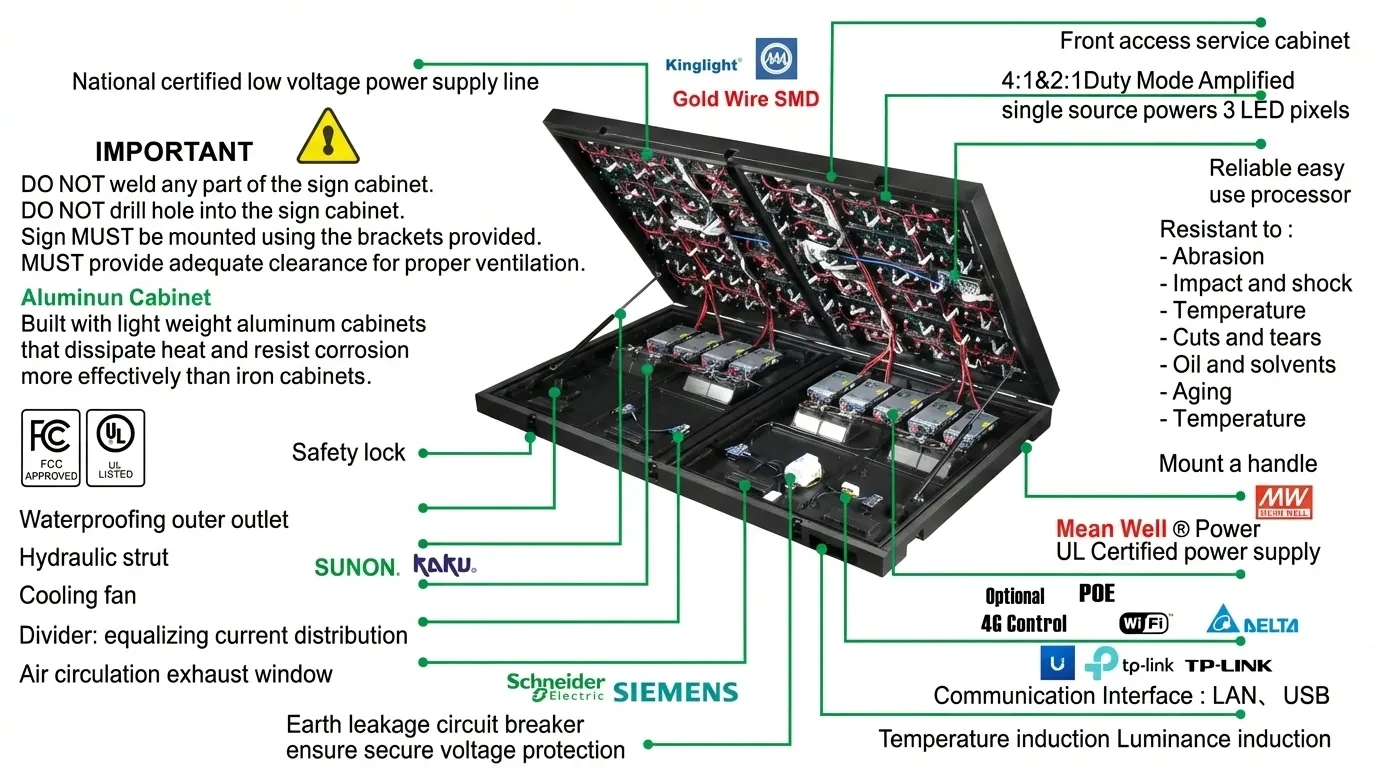

We have the maximum care on all components of LED signs even a most common of bolts
Mean Well Power UL Certified power supply
5 Year Warranty Industry Leading 5 Year Manufacturer's Warranty
Optional Accessories Brightness scnsor & Temperature sensor
Earth leakage circuit breaker ensure secure voltage protection
Three defense paint waterproof Moisture-proof Antistatic
Voltagc AC:210-240 50Hz-60Hz AC:95-115 50Hz-60Hz
IP 65 international certification standards
Anti-interference circular EMI Filter
Louvre Panels Heat & UV resistant polycarbonate grills
National certified low voltage powersupply line
Protect grounding ensure the personal safety
Fan is very important in a limited space
Outdoor waterproof / Indoor module 12.6Wx6.3H” (32Wx16Hcm)
Our standard module size is 12.6×6.3″ (32x16cm), you can upgrade the old LED displays made of our 12.6×6.3″ standard modules easily with higher resolution. Just purchase the new modules, take off and replace the old ones. It's possible to upgrade your sign's resolution and brightness so that you can keep it looking like new. Customized sizes and designs are accepted besides standard items.
Due to the design structure of 3 in 1, full-color SMD size is small, so the light-emitting area is small, and the black area is large, thus to improve the contrast of the LED display. They can be extremely bright with crisp output, clear images, and true to color nature. It's a cost-effective choice with superior quality for viewing, high resolutions and bright images, making them great for indoor and outdoor signs and screens. Its advantages include its low power consumption, high contrast, and wide viewing angle. It also has the ability to withstand harsh conditions, such as direct sunlight and high temperatures.
| Pixel Pitch | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 |
| Encapsulation | SMD | SMD | SMD | SMD | SMD | SMD |
| Module size WxH | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm |
| resolution ratio | 128x64dots | 104x52dots | 80x40dots | 64x32dots | 48x24dots | 40x20dots |
| Brightness(nits) | 5000 | 5000 | 5000 | 5500 | 6000 | 5500 |
| Best Viewing distance | 8m (26ft) | 9.3m (31ft) | 12m (49.21ft) | 15m (49.21ft) | 20m (66ft) | 24m(78ft) |
| Driving method | 1/16scan | 1/13scan | 1/10scan | 1/8scan | 1/6scan | 1/4scan |
Professional Front Open/ Front access/ Back access LED display cabinet
1, Designed for Wall installation. Two pcs back to back to be installed for Pole , Pylon , Monument design.
2, Double sided display available
3, LED Display Cabinet design for easy install and dismantle.
4, Wire-welded Aluminum/Iron cabinet for strength and rigidity
5,The LED screen cabinet can be made lighter and thinner, saving space, light, and beauty, and the disassembly of the LED module is also more convenient and efficient.
6, IP65 waterproof standard for outdoor advertising.
7, Excellent ventilated fans installed for better heat dissipation,improve the stability.

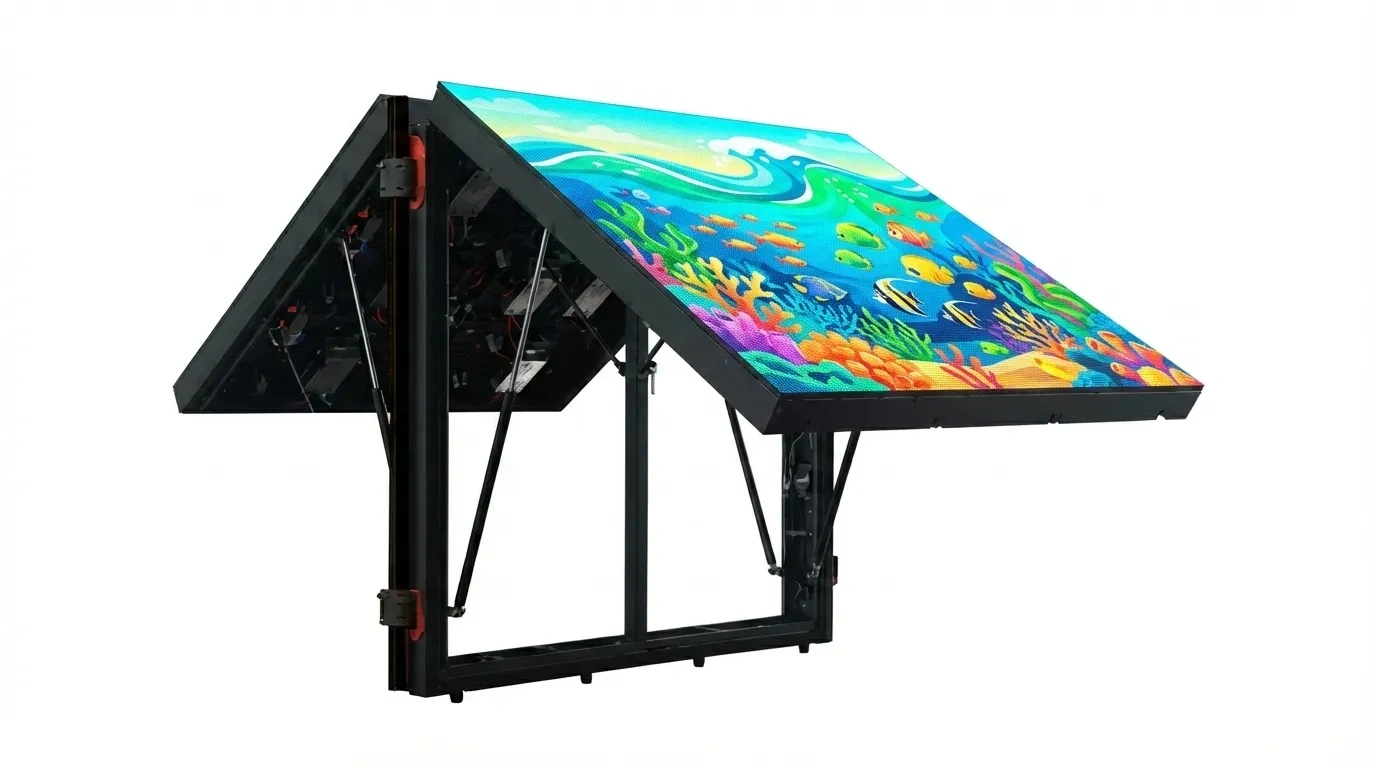

8, Hydraulic Rod Device, front service by opening cabinet
High quality LED component
1, SMD indoor/outdoor display products in pixel pitch from 2.5mm- 10mm, allowing for crisp, clear imagery and a widened viewing experience.
2, We use high-quality Nationstar SMD LED chips, lead frames, resin etc…
3, HOB/COB module is available, moisture proof, dustproof, anti-collision and anti-UV. It solved LED dropping problem caused by collision during assembly, transportation and installation process.
4, Standard module size is 12.6×6.3”(32x16cm),12.6×12.6”(32x32cm). Same size module can be updated to high resolution.
5, High refresh rate: 1920 / 3840Hz, no scan lines and dots when photographed under 3840HZ
6, High Brightness: 5000 – 8000cd available, work perfectly even under direct sunlight
Professional Front maintain LED Displays Details
Trusted.Easy.Fast, Innovative,Unique, User-friendly software Choose the LED Sign that suits your message style and location.
Front Access Led Module
Dual service LED module of front and rear design is an effective full-color SMD 3 in 1 LED sign module with high quality and high brightness. 320mmX320mm and 250mmX250mm are available. People usually use its front maintenance function. Its easy to take the modules with a hexagonal screwdriver. Disassemble steps in a few seconds with special tool.
1.Insert the module removal tool into the corresponding
holes on the front of the module.
2.Rotate 90 degrees counterclockwise to unlock the module lock.
3.Take modules out of cabinet 4.Disconnect power and flat cable, checking inside components and module
Front Access Led Cabinet
Outdoor front access module 12.6×12.6″(32x32cm),12.6Wx6.3H”(32x16cm),All module s in same sizes have same hole position
| Pixel Pitch | P3.91 | P4.81 | P5 | P6 | P6.67 | P8 | P10 |
| Encapsulation | SMD | SMD | SMD | SMD | SMD | SMD | SMD |
| Module size WxH | 25x25cm | 25x25cm | 32x32cm | 32x32cm | 32x32cm | 32x32cm | |
| Module size WxH | 32x16cm | 24x24cm | 32x16cm | 32x16cm | |||
| resolution ratio | 64x64dots | 52x52dots | 64×64(32)dots | 40x40dots | 48×48(24)dots | 40x40dots | 32×32(16)dots |
| Brightness(nits) | 6000 | 6000 | 6000 | 6000 | 6000 | 6500 | 6500 |
| Best Viewing distance | 12m (49.21ft) | 14.5m (49.21ft) | 15m (49.21ft) | 18m(59ft) | 20m (66ft) | 24m(78ft) | 30m (98ft) |
| Driving method | 1/8scan | 1/7scan | 1/8scan | 1/5scan | 1/6scan | 1/5scan | 1/2scan |

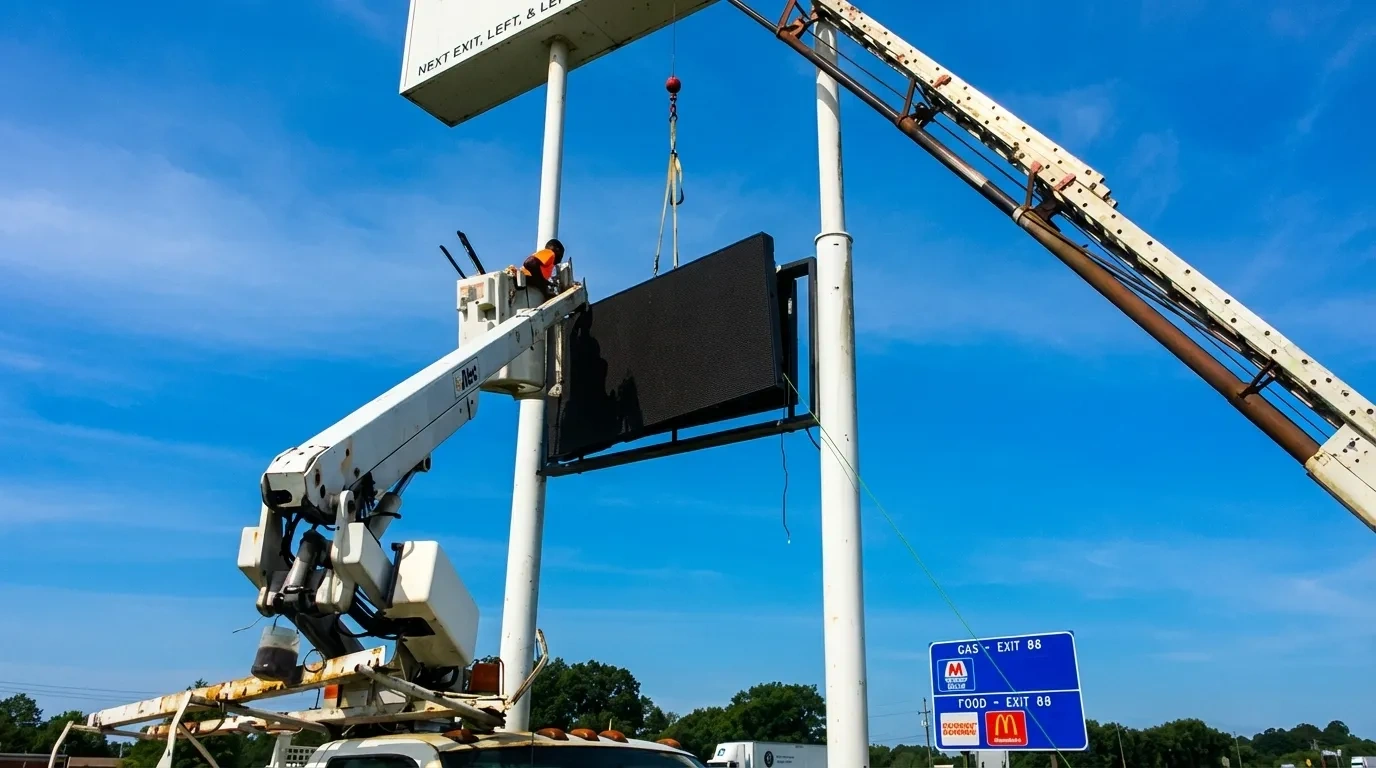

Main Installation Methods
1, LED display screen installation methods vary, including indoor and outdoor options such as recessed, wall-mounted, hanging, pole mounted, and rooftop installations, each tailored to specific environments and requirements.
2,Six common installation methods in the LED display industry.
3, Select a suitable installation method based on the size and location of the LED display screen is paramount.
4, Each method has distinct advantages and considerations, ensuring the screen is effectively installed and optimally utilized in its designated environment.

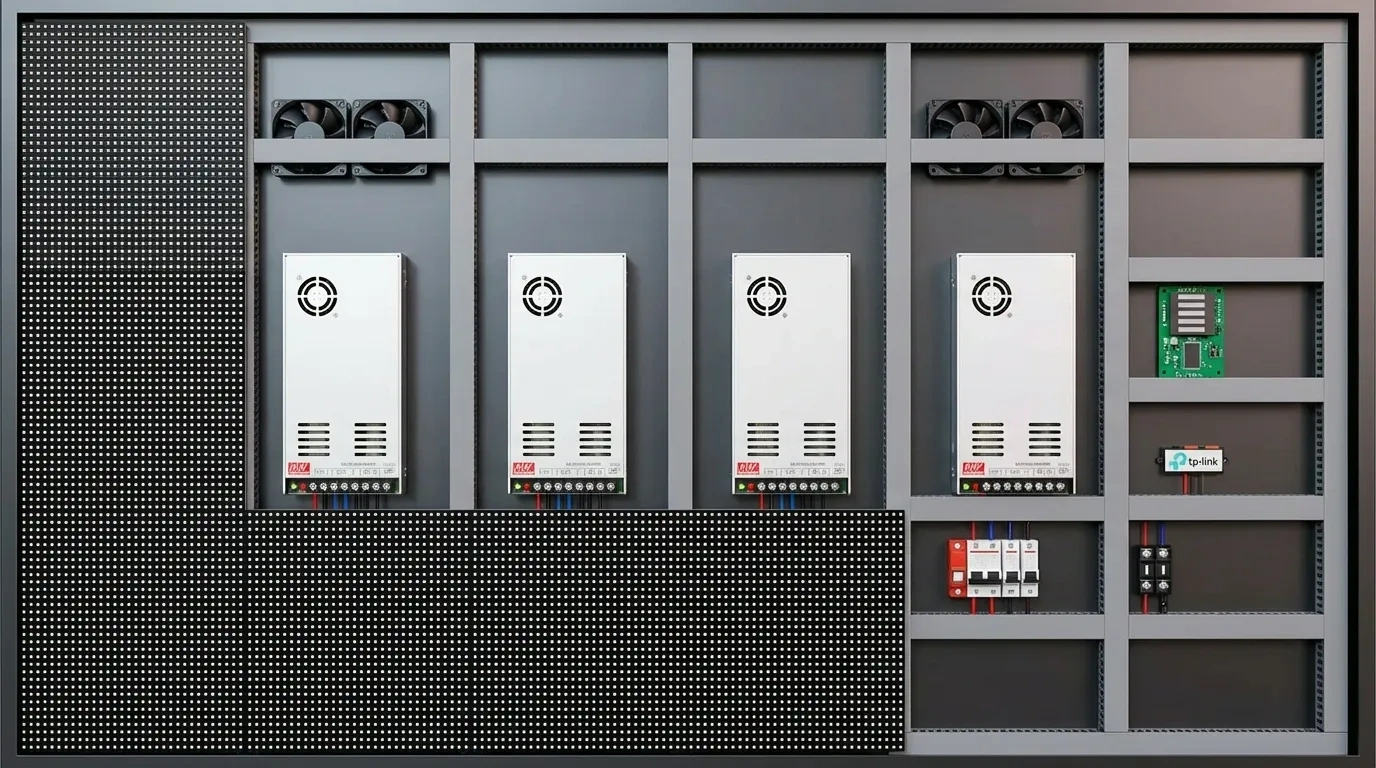

LED electrical components
1, The body and shell of the LED screen should have good grounding measures.
2, All electronics inside the sign are protected by a water, sea salt, dust and corrosion resistant conformal coating.
3, High quality Meanwell power supply makes the display stay effective.
4, Circuit breaker inside the LED display cabinet.
5, UL Rated Power/ Ethernet (Cat5) cables
6, Durable connectors, waterproof
7, High temperature resistant
8, Automatic Control for Brightness
Standard sizes meet your Various usage requirements Can help to create nearly any size and shape screen that your desire
The cloud-based control software foucombines functionality with an amazing user experience.
Operators can conveniently control displays from work, athome or anywhere from their mobil edevices, making control easier than ever.
For remote locations without an internet connection, we can help build cloud for hundreds of led display wwiyh intelligent group management system.
You can set up access for multiple users, with different rights, at multiple account levels.
Use the dashboard to instantly check display connections and view running content.
Main Installation Methods of LED sign LED signs are Energy-effcient, durable, and highly customizable Single Pedestal Type.Floor-Mounted Type.Double Pole Type.Hanging Type.Embedded Type.Wall Mounted Type
