#RGB68 Outdoor LED Sign -Business Digital Signage 101×38”

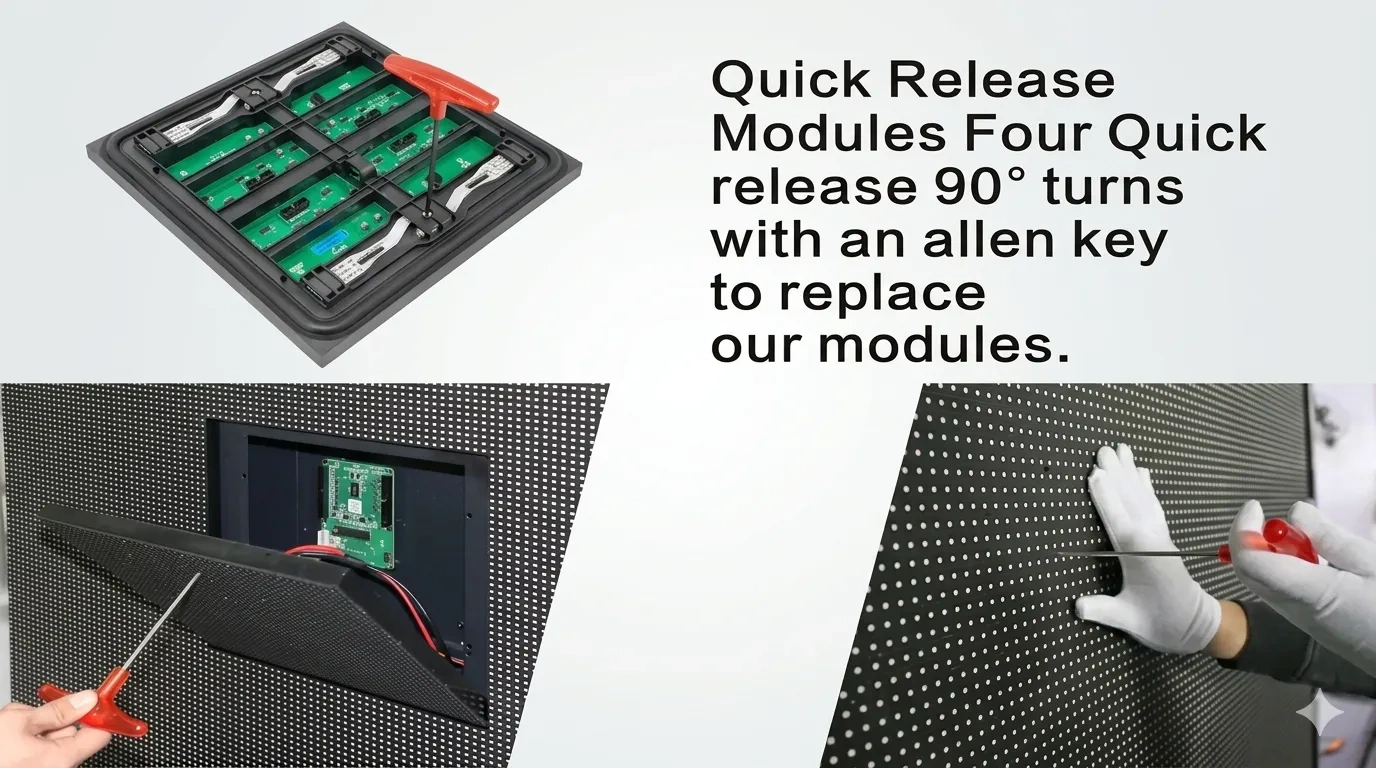

Professional Front maintain LED Display
Front And Rear Service LED Display
Standard Size LED digital signage 256x 96×17.5cm / 101×37.8×6.9″
| # RGB-68 | Technical Specifications | |
| Pixel Pitch | P5RGB | P10RGB |
| LED Lamp | SMD | SMD |
| Resolution (WxH) | 512×192 | 256×96 |
| Brightness (cd) | 5500 or more | 5500 or more |
| Display size | 256x96x17.5cm / 101×37.8×6.9″ | |
| View Angle (H/V) | 160° /140° | |
| Refresh Rate | 1920Hz /3840 Hz | |
| Max power consumption (W/㎡) | 900W | |
| Display weight | ||
| Programming | USB / NET/ WIFI connection through PC or mobile phone | |
| Cabinet | Metal front / rear access cabinet | |
| Frame rate(Hz) | 60 | |
| Input Voltage | AC110V or AC220V @ 50Hz / 60Hz | |
| Lamp Life | 100000+ Hours | |
Direct View LED Feature Focus on small pitch LED
Brightness of an LED display
The brightness of an LED display is usually expressed by a numerical value in cd/ or nit(s), which refers to the luminous intensity per square meter when the display is working normally. The suitable brightness
of an LED screen depends on the application scenarios to a great extent. In general:Indoor Brightness: 1000-1500 nits is enough for most indoor use Outdoor Brightness at close viewing, shade or sunset: 3500-4000 nits Outdoor Brightness with direct sun: up to 5,000 + nits should be enough in most situations For outdoor applications, the brightness
can be automatically adjusted according to the brightness of the light after adding light sensor to achieve the most suitable brightness for viewer.
Optimum viewing distance
The optimal viewing distance is typically 2-3 times the pixel pitch number in meters. For example, a pixel pitch of 10 would require at least a distance of 20 -30meters to experience optimal detail. Pixel pitch affects both viewing distance and perceived visual performance of LED displays.The minimum viewing distance for P10 is 10m and the best viewing distance is 20m. So, if people watch it from 10m to 50m away, they can see an acceptable image quality with a fading level of pixilation from 10m to 20m and a very good image quality after 20m. So you may want to increase the image quality using P8 or even P6 module for close range. But If the viewing distance was from 20m to 50m, there was no point to use smaller pixel pitch with higher resolution. Because, the viewing distance was already more than best viewing distance of P10.So, P10 is suitable for any outdoor application with viewing distance of 10m and more. P8 or P5 can also be used if target audiences are in closer distance.
Easy programmed software
1.Edit the contents under the software through computer, laptop, mobile phone etc.
2.Support text, animation, video, clock, temperature etc..
3.Time, Brightness control
4.Setting on/off times
5.Content creation and schedulling
6.Playback from USB drives
7.Network configuration
Communication Options
1.On-site management:
Wi-fi connection: the mobile phone or laptop connects to the Wi-fi of the LED display
Internet connection: Standard TCP/IP ,Cat 5/6 cable or USB key connect LED sign to your computer, laptop directly.
2.Wireless:
POE connection: Expand your network to where there are no power lines or outlets
4G controller: For remote locations without an internet connection, best for controlling outdoor or many signs from far distance
Cloud based Multi-screen control
1, Our LED systems can be controlled and programmed via Cloud.
2, Users can access the Internet through the management computer (PC) and mobile APP, log in to their own account, and can manage the display screen centrally and remotely.
3, For remote locations without an internet connection, we can help build cloud for hundreds of led display with intelligent group management system.
4,All programs for all led display could be uploaded and changed at the same time via cloud. It’s totally wireless and remote.
5, Through the platform, users can upload and schedule content on the LED screens, monitor and analytics the performance of the displays in real-time, and receive alerts if any issues arise.
Edit cool programs, rich, eye-catching
1, Boost your branded marketing and promotions with a beautifully engaging business video.
2, The led screen supports almost all the most usual formats: jpeg, mov, mp4 etc..
3, Many beginner-friendly free online video maker such as Canva, Poster my Wall, Unsplash that helps to creat stunning videos in minutes.
4, Select basic layer image from the available free templates and professional layouts with drag- and – drop feature to design your animated video
5, Easily edit and add elements: add your design elements, designed text or upload media from 3rd party
6, We can help to program your sign, to help you create unique and quality content on the display.
Additional information
Notes of installation
DO NOT weld any part of the sign cabinet or bracket. DO NOT drill holes into the LED sign cabinet, DO NOT put the LED sign cabinet into other enclosures. Don’t disassemble the product random(ask help for professionals)
Place bracket with the slotted holes against the wall, fasten the bracket to the wall using the 2 long screws and ensure that the bracket
is level before tightening. Attach the LED sign to the fixing bracket, fasten the angle iron on the sign (provided with sign) securely to the bracket with the stainless
screws provide.
Main installing bracket Angle iron (2pcs included with the led sign)

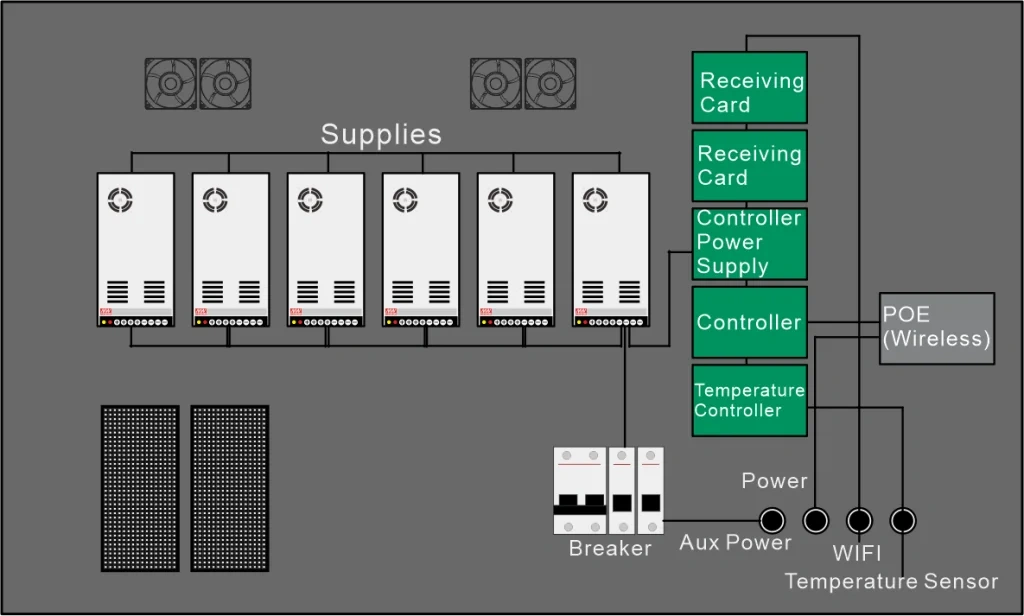

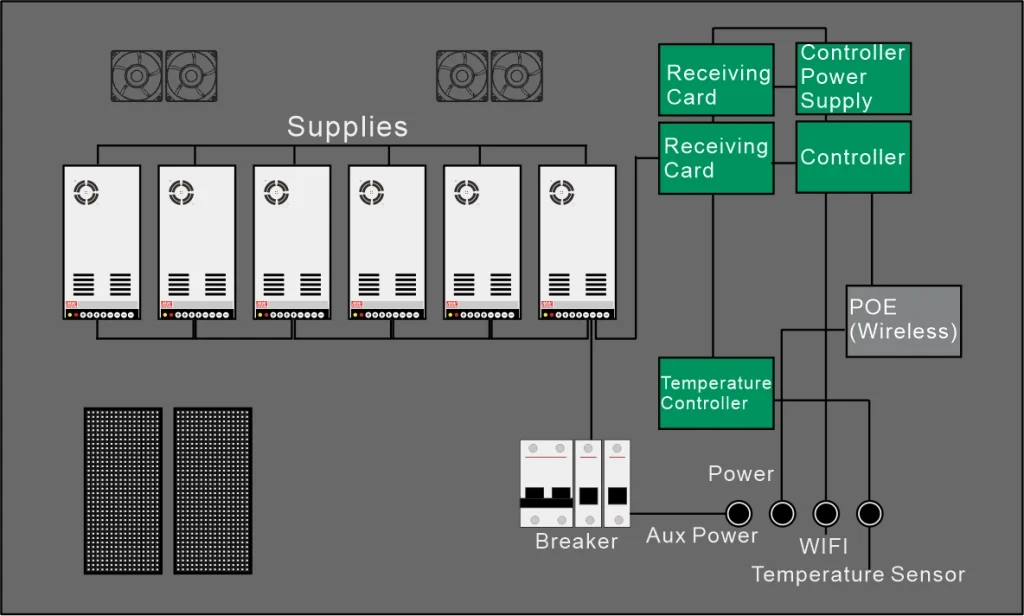

LED Electronic connection
Electrical Installation Requirements

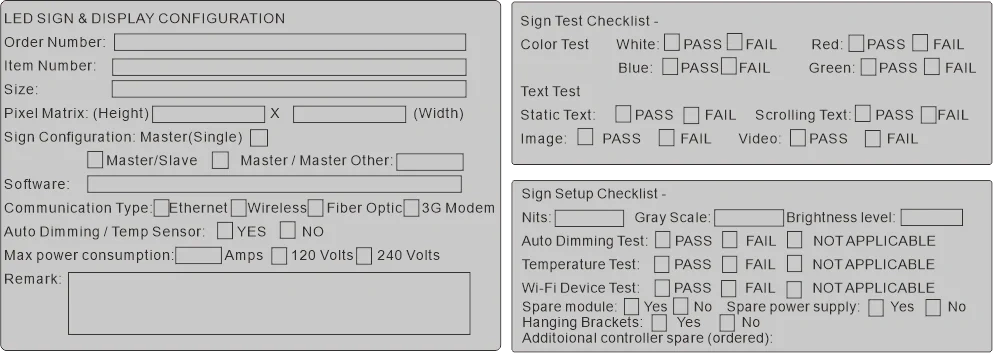

The following pages contain examples of LED cabinet and installation.
They are intended for reference use only, not as mandated drawing styles and layouts.
Connection instruction is available for specific Voltage, Amperage,
and number of cabinets connection.
Power cable connection:
Each sign has a power cable connection
Larger signs divided into several parts will have more than one power cable connection
Circuit breaker inside the LED display cabinet.
Main electrical connections should be done by a licensed electrician

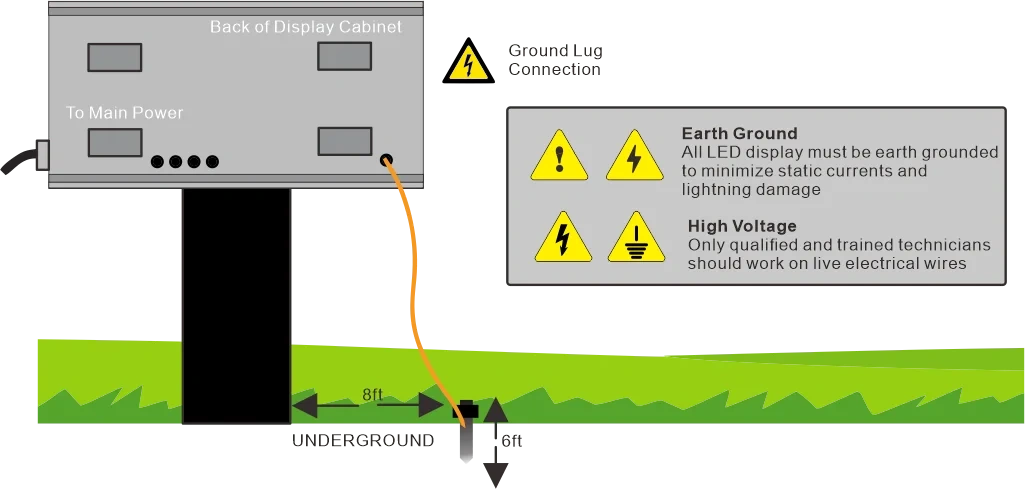

Grounding Requirements
The body and shell of the LED screen should have good grounding measures.
In general, lightning may hit the screen directly and then the lightning will be released into the ground by earthing device.
The grounding program should be considered according to specific situation. For example, when the display is set independently, the grounding system also should be set independently.A proper Earth Ground should be run from the sign, to a grounding rod 3/8″ diameter and 6′ long, ground rod must be completely buried.

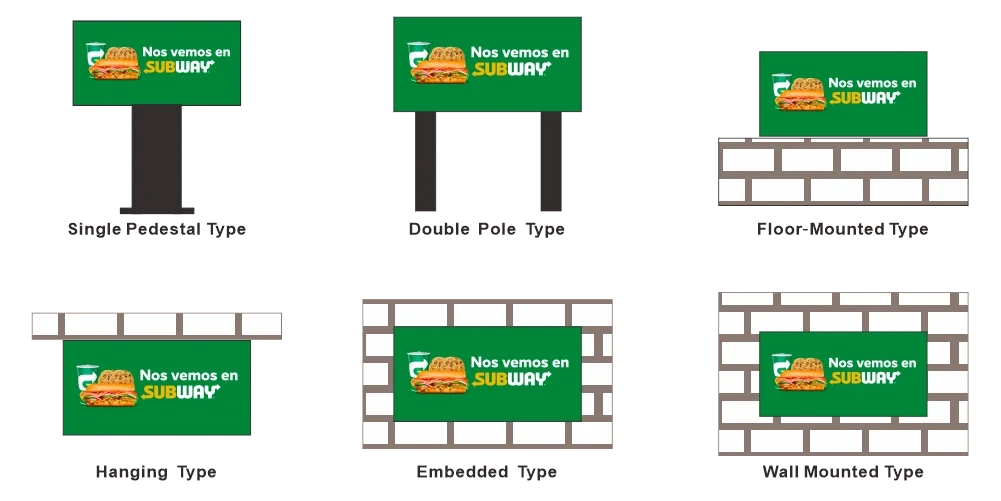

Main Installation Methods of LED sign
LED signs are Energy-efficient, durable, and highly customizable
To attract customers, you’ll need a kind of illuminated advertising signs. What types of signs for customize?
1, A Pylon sign is tall, towering sign. Their height depends on different factors, about 20ft to 80ft that ideal for attracting attention from far distance.

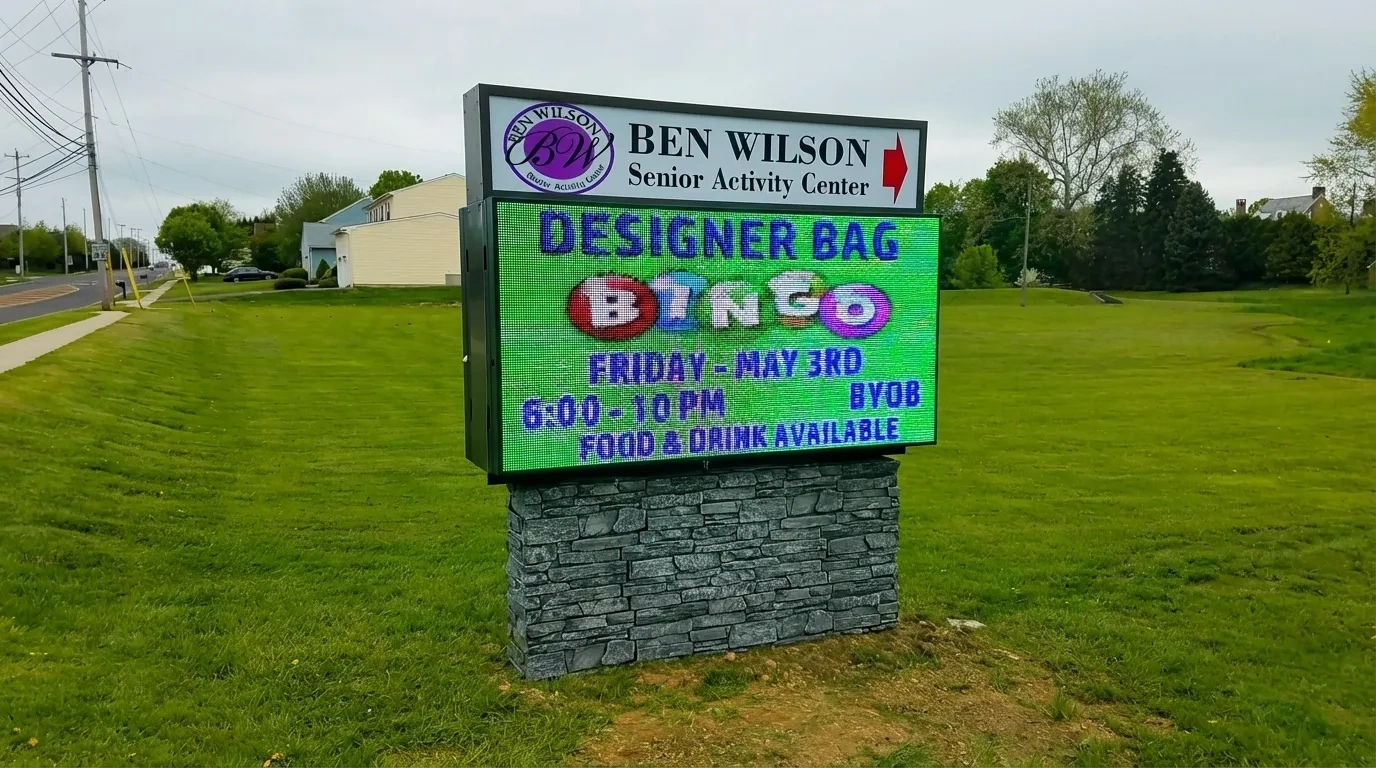

2, A monument sign is around 6″ to 12′” in height.
Both monument and pylon signs are located away from the main building. They are placed either at the property entrance or along the road so people can find the door.

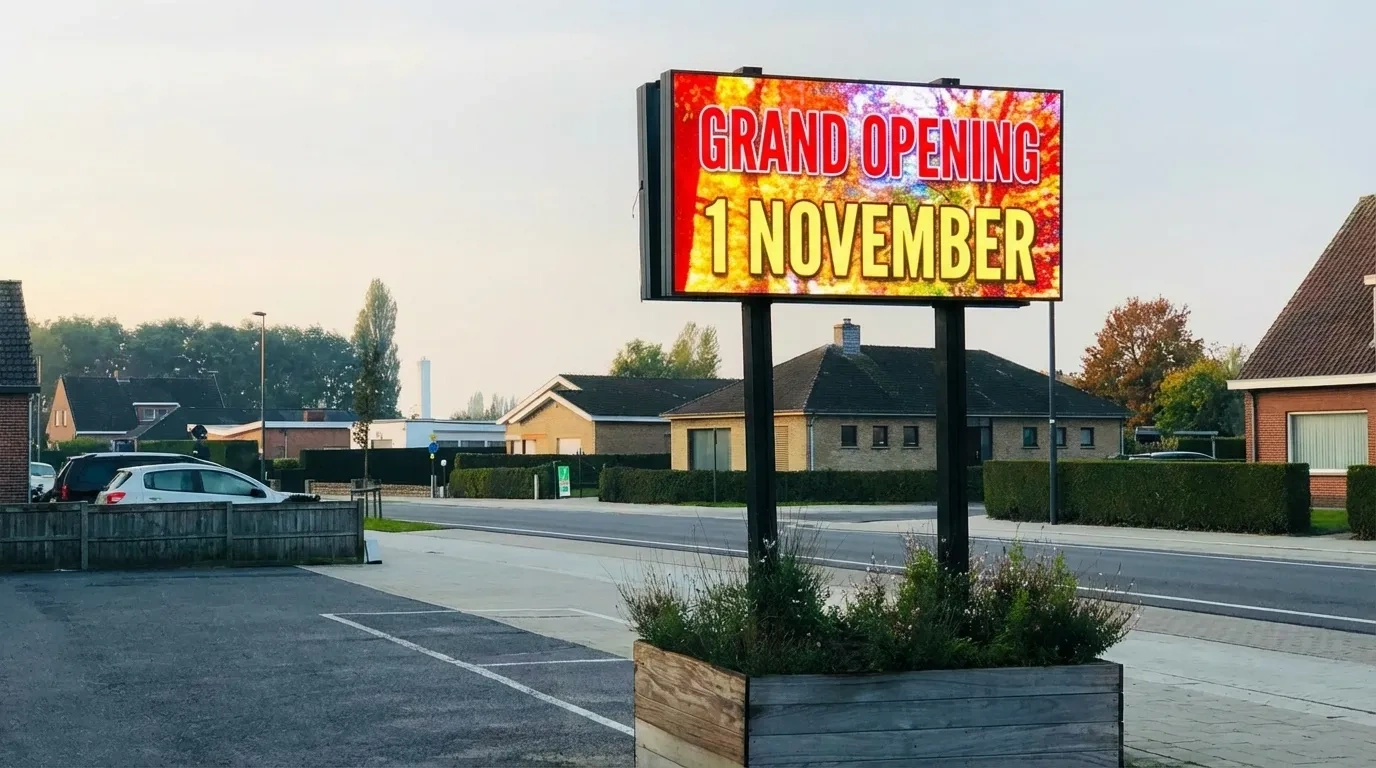

3, A pole sign has an exposed pole with no cover or decoration. it’s cheaper and is less attractive than pylon signs and other types of monuments. Less material equals lest cost and less fabrication labor.
4, LED Light Box Signs (Cabinet Signs or Box Signs)
A typical led light box sign contains three main components; (1) the ID Cabinet, (2) the LED Sign, (3) the Pedestal.
5, Digital LED billboard: normally means outdoor led screen / display
6, Roadside led display: large digital screens located high-traffic locations such as cross-roads, highways, service stations, etc,to be seen at all times of the day and night
