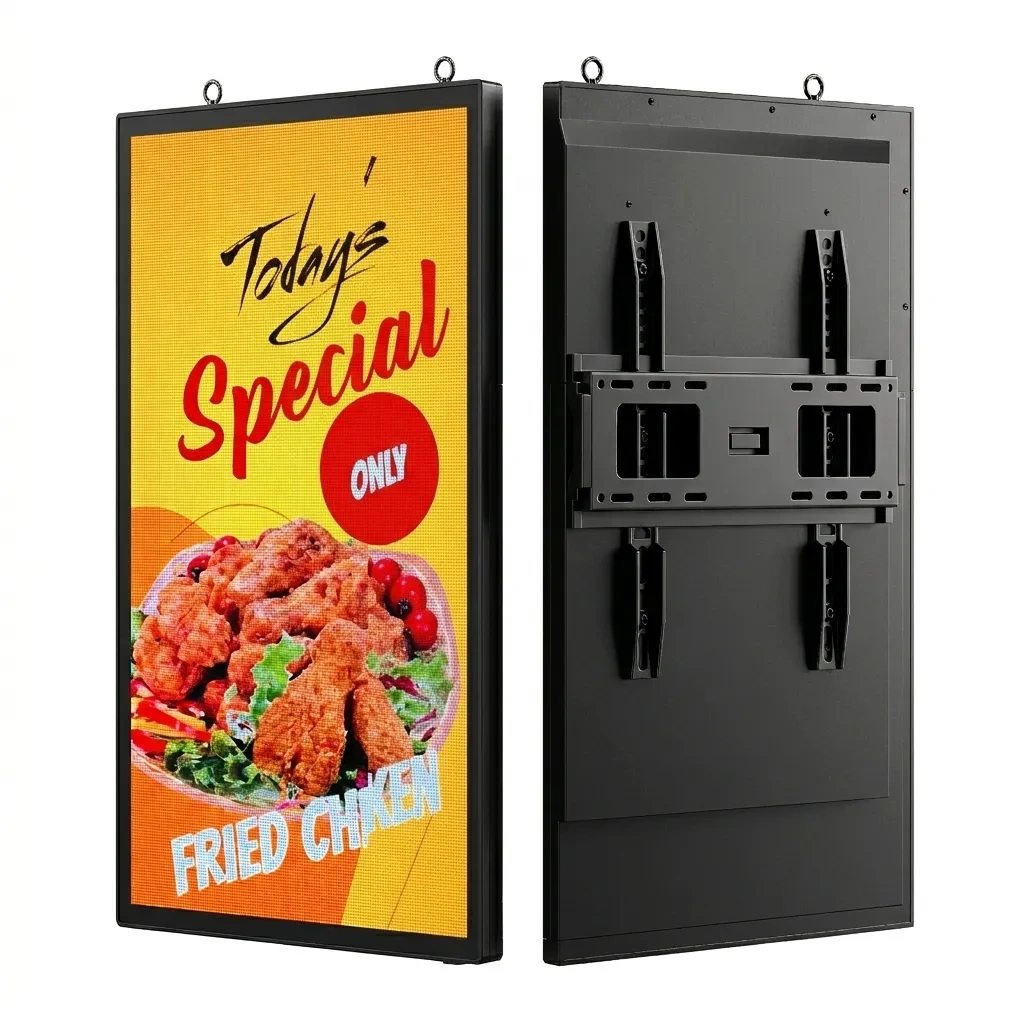

Vertical LED Poster RGB82
Standard Size LED digital signage 64x128x7cm / 25.2×50.4 x2.8″
| 1, 9:16 ratio is used for vertical layouts. Elegant Slim Design 2, The Fine-pitch LED Display series features a slim bezel that is designed to blend into any interior to enhance the décor of the environment in which it’s installed and deliver an immersive viewing experience. 3, High Brightness & Expressive Colors 4, Easy Install & Usage 5, Front / Rear Accessible 6, 160° View angle 7, Single / Multi Control 8, Mini COB & GOB SMD LED Modulele |
1.Function： Ability to Display Video, Pictures, Gif, Text, office, Clocks, Timing, Temperature, Humidity, Brightness etc. 2.Memory：4GB memory and ability to expand U-disk memory. 3.Communication： Ethernet LAN port, 4G network (optional), Wi-Fi, USB. 4.Operation： App programming via Wifi , Windows software for programming via Desktop PC/Laptop 5.Video Formats： AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM. 6.Animation Formats：SWF、FLV 、GIF 7.Image Formats：BMP、JPG、JPEG、PNG etc. |
| # RGB-82 | Technical Specifications | ||||
| Pixel Pitch | P0.93RGB | P1.25RGB | P1.53RGB | P1.86RGB | P2RGB |
| LED Lamp | SMD | SMD | SMD | SMD | SMD |
| Resolution (WxH) | 688×1376 | 512×1024 | 416×832 | 344×688 | 320×640 |
| Brightness (cd) | 600 | 700 | 700 | 700 | 700 |
| Display size: WxHxTcm /inch | 64x128x7cm / 25.2×50.4 x2.8″ | ||||
| View Angle (H/V) | 170° /160° | ||||
| Refresh Rate | 1920Hz /3840 Hz | ||||
| Conventional power (W/㎡) | 400-600W | ||||
| Display weight | |||||
| Programming | USB / NET/ WIFI connection through PC or mobile phone | ||||
| Cabinet | Metal front / rear access cabinet | ||||
| Frame rate(Hz) | 60 | ||||
| Input Voltage | AC110V or AC220V @ 50Hz / 60Hz | ||||
| Lamp Life | 100000+ Hours | ||||
Brightness
1.LED displays are inherently brighter units. They are made up of thousands of very bright individual LEDs bulbs, designed to be visible in bright sunlight.
2.For indoor use,because LED is much brighter, it really packs a punch and stands out bright against LCD screens.
3.Brightness is vital when using outward facing screens, normal LED display panels has 800cd/m² which more than 3 times brighter than a standard home TV to allow easy readability in window displays.
4.Sunlight viewable Brightness up to 5000cd is available

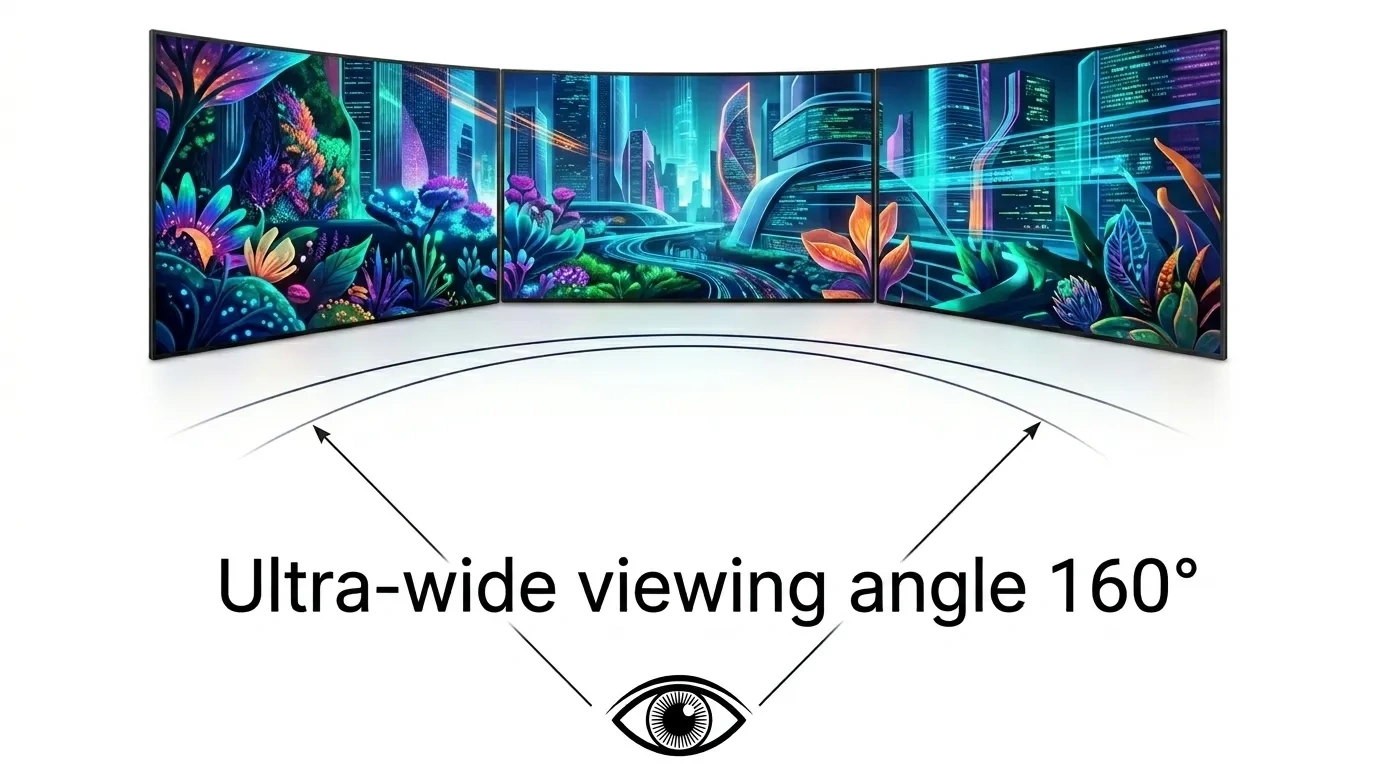

Ultra-wide viewing angle, high quality image
1.Commercial LED displays generally have wide viewing angles; horizontal and vertical viewing angles are between 120-160 degrees.
2.Ultra-wide LED displays have viewing angles of up to 180 degrees. LED screens offer higher brightness, higher contrast, and more vibrant colors
3.High resolution and color accuracy for improved image quality
High quality LED component

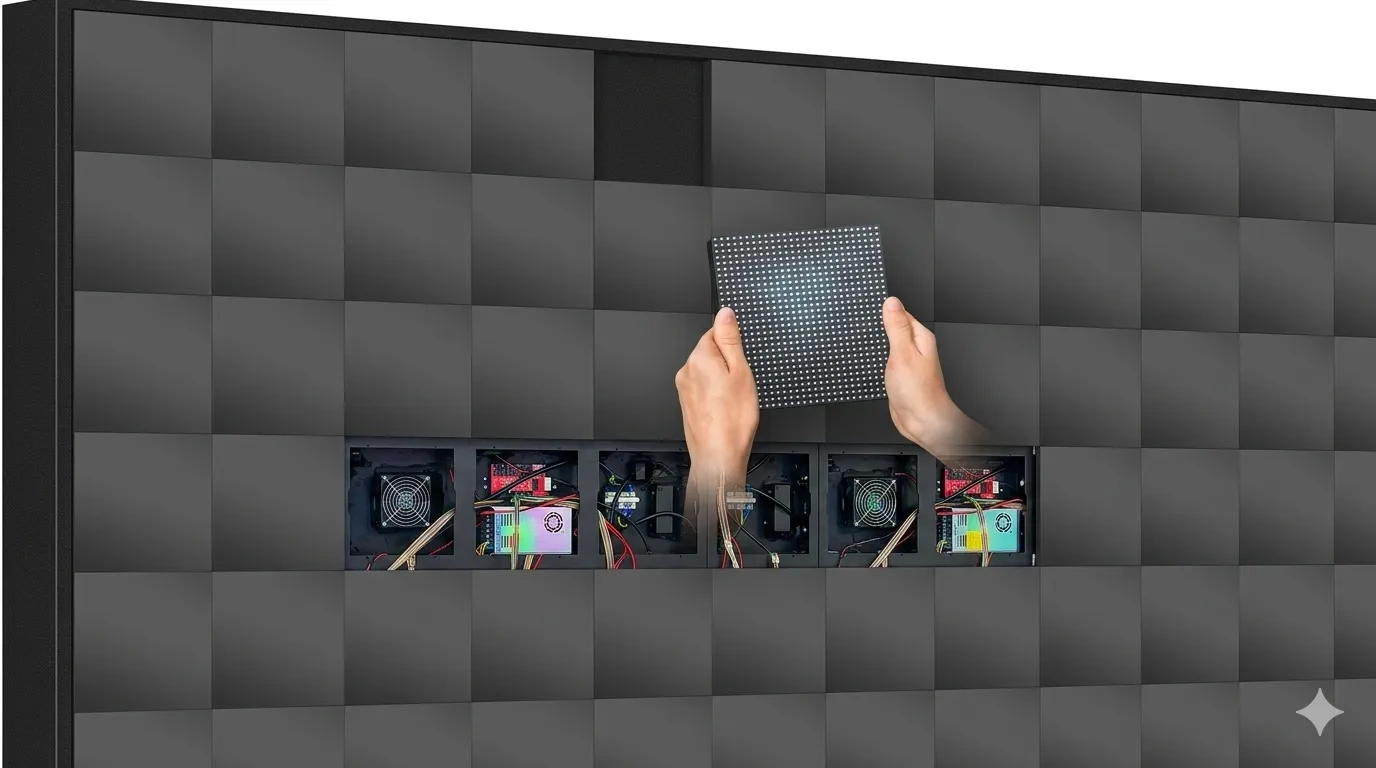

1.Front /Rear access module
2.COB / GOB LED features water-resistant, dust-proof, shock, UV-resistant
3.LED screens offer a wide range of resolutions, brightness, weather protection and size flexibility to fit the specifics of your project.
Ultra-Slim & Bezel-Free Design
1.Minimalistic and sleek, the 70mm(2.76″)-slim LED display exudes sophistication to complement any space and interior design.
2.Slim and lightweight design makes them easy to install and move around as needed
3.LED displays can be made to almost any size or depth.
4.The metal structure of our LED panel are extremely robust and very easy to maintain.
5.Bezel-Free Design is available, smaller individual modules/led panels which fix together to create a seamless large screen display.

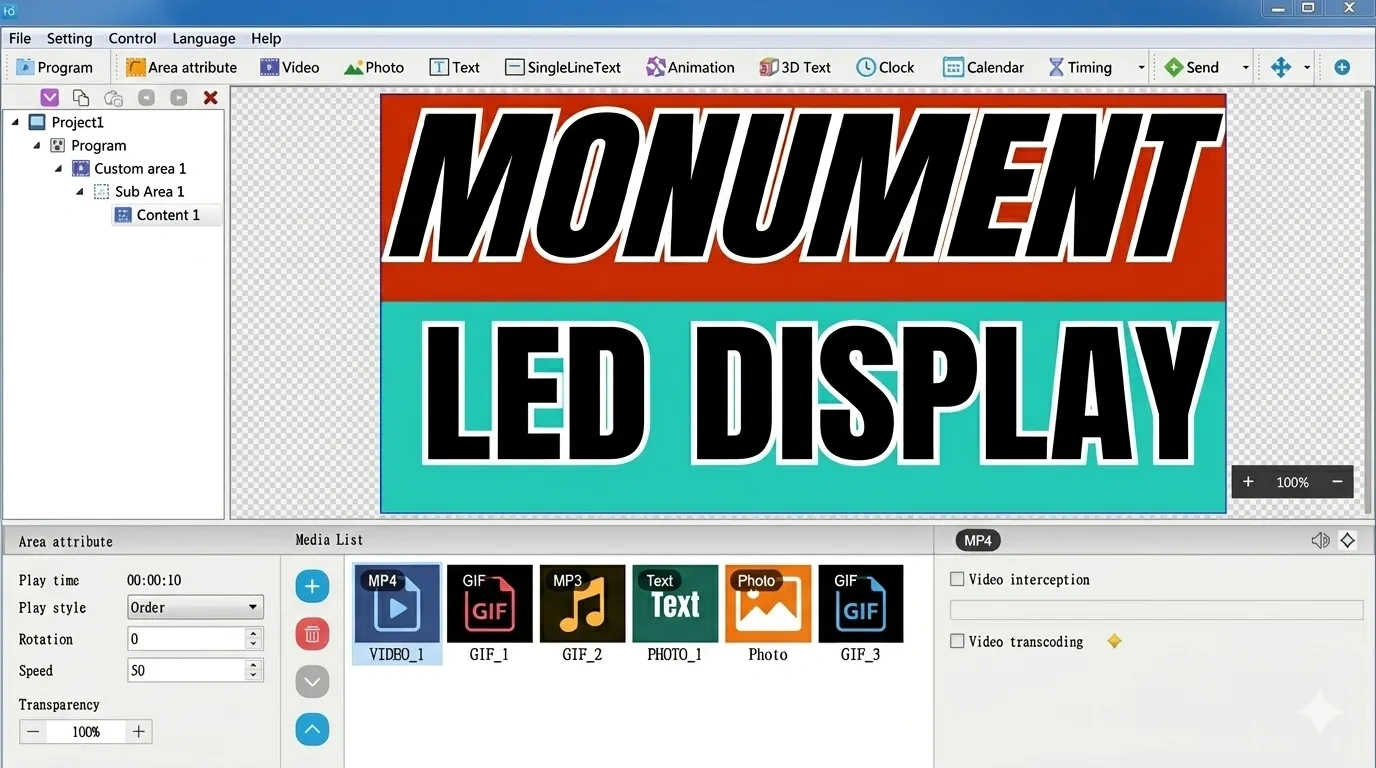

Easy programmed software
1.Edit the contents under the software through computer, laptop, mobile phone etc.
2.Support text, animation, video, clock, temperature etc..
3.Time, Brightness control
4.Setting on/off times
5.Content creation and schedulling
6.Playback from USB drives
7.Network configuration

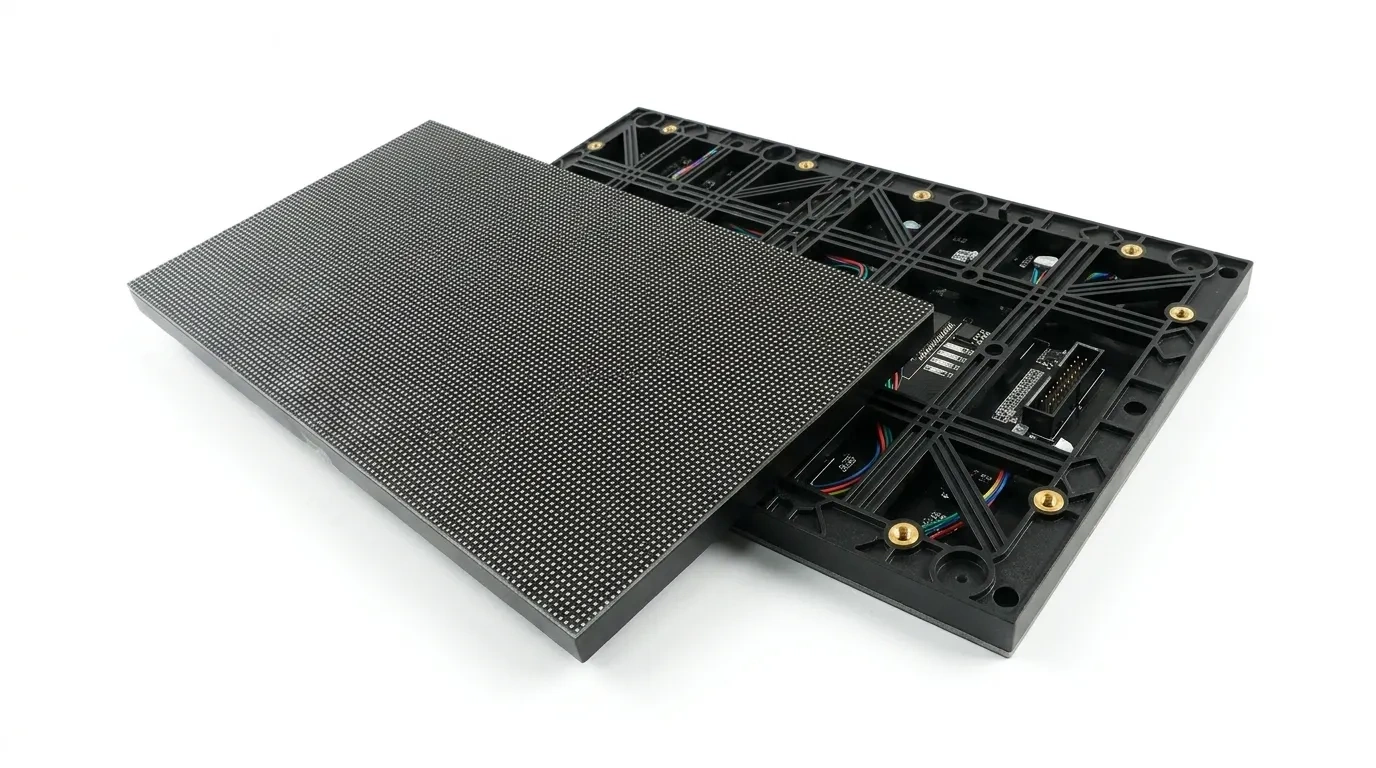

LED Module Parameter
| Pixel Pitch | P0.93 | P1.25 | P1.53 | P1.86 | P2 |
| Encapsulation | COB | COB/SMD | COB/SMD | COB/SMD | SMD |
| Module size | 32x16cm | 32x16cm | 32x16cm | 32x16cm | 32x16cm |
| resolution ratio | 344x172dots | 256x128dots | 208x104dots | 172x86dots | 160x80dots |
| Brightness(nits) | 600 | 700 | 700 | 700 | 700 |
| Best Viewing distance | 2.8m(9ft) | 3.8m (13ft) | 4.6m (15ft) | 5.6m (18ft) | 6m (20ft) |
| Driving method scan | 1/44scan | 1/64scan | 1/52scan | 1/43scan | 1/40scan |

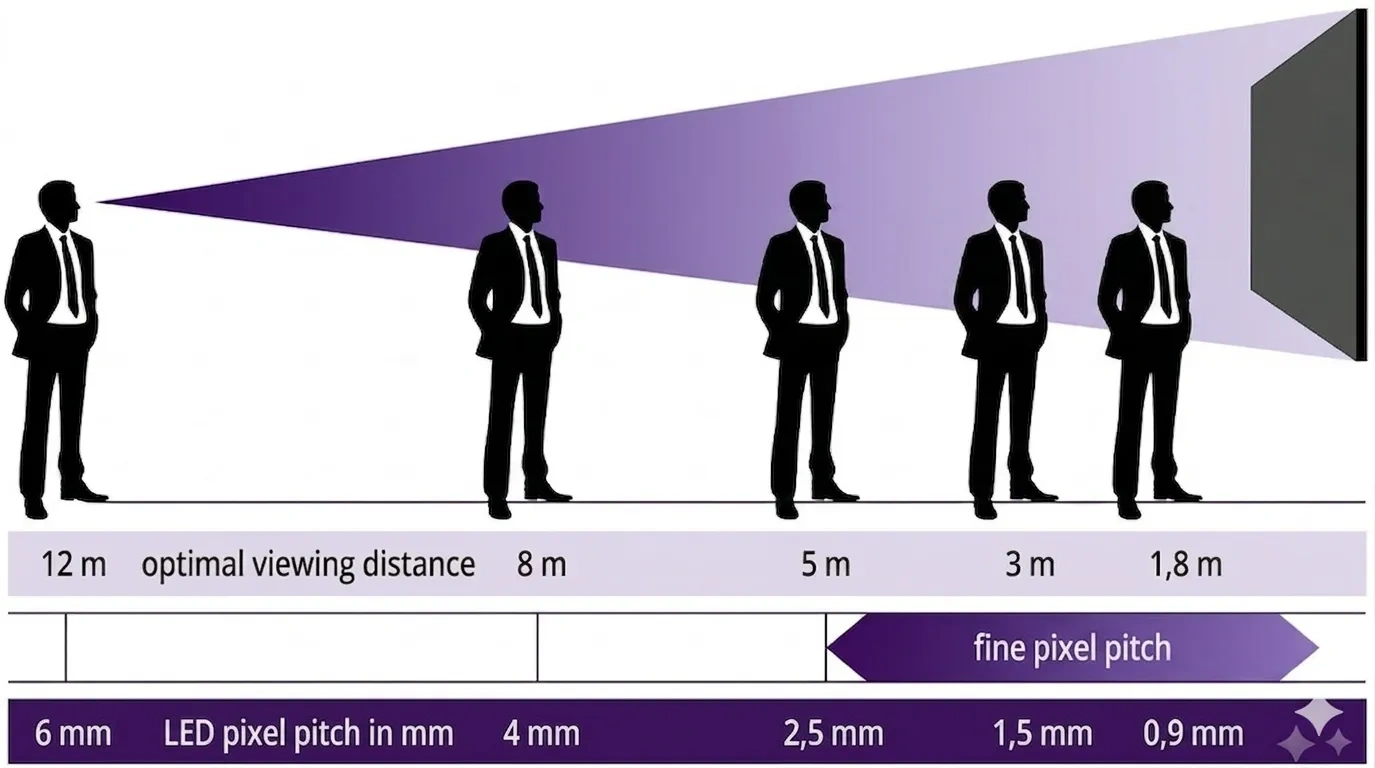

Viewing distance of LED Display Screen
The viewing distance can be the appropriate distance that you can see the images on the LED display clearly. There are 3 calculation formula as below: (1) Minimum viewing distance (smooth image provided) Pixel Pitch(mm) × 1000/1000 = Minimum Viewing Distance (m) For example, a LED screen with 10mm pitch has a minimum viewing distance of 10 meters, and a 2mm pitch screen has a minimum viewing distance of 2 meters. (2) Optimum viewing distance (HD image provided) Pixel Pitch(mm) × 3000/1000 = Optimum Viewing Distance (m) The optimum distance is three times longer than minimum viewing distance. (3) Maximum viewing distance Height × 30 = Maximum Viewing Distance (m) For example, a LED screen with 2m height can be viewed from 60 meters away. However, these distances are all estimates, and the actual viewing distance will also be affected by many factors, such as ambient light, display brightness, and viewer vision.
Ability to update your existing LED display
Our standard module size is 12.6×6.3″ (32x16cm) ,12.6×12.6″ (32x32cm). Same size modules have same physical size, you can upgrade the old LED displays made of our standard modules easily to higher resolution. All pitch resolution in same size can be changed easily.

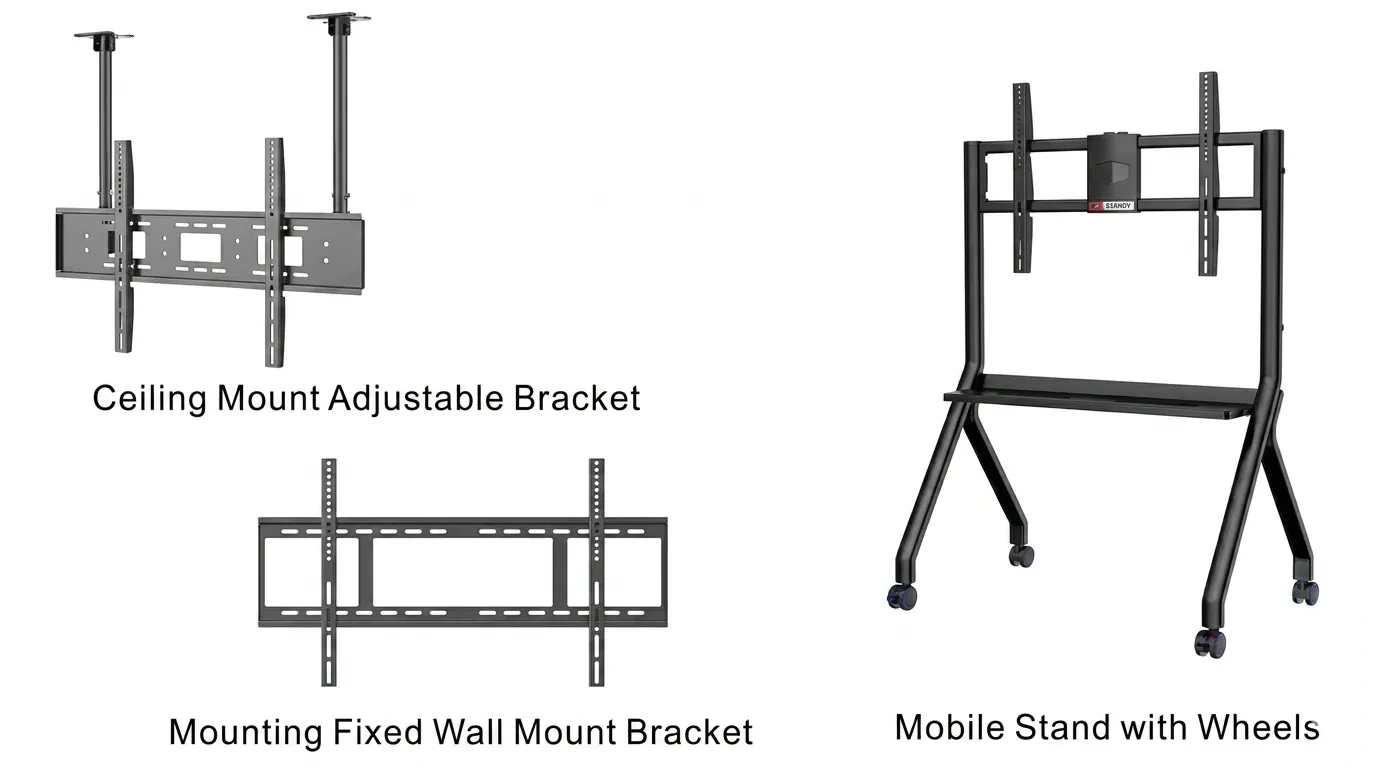

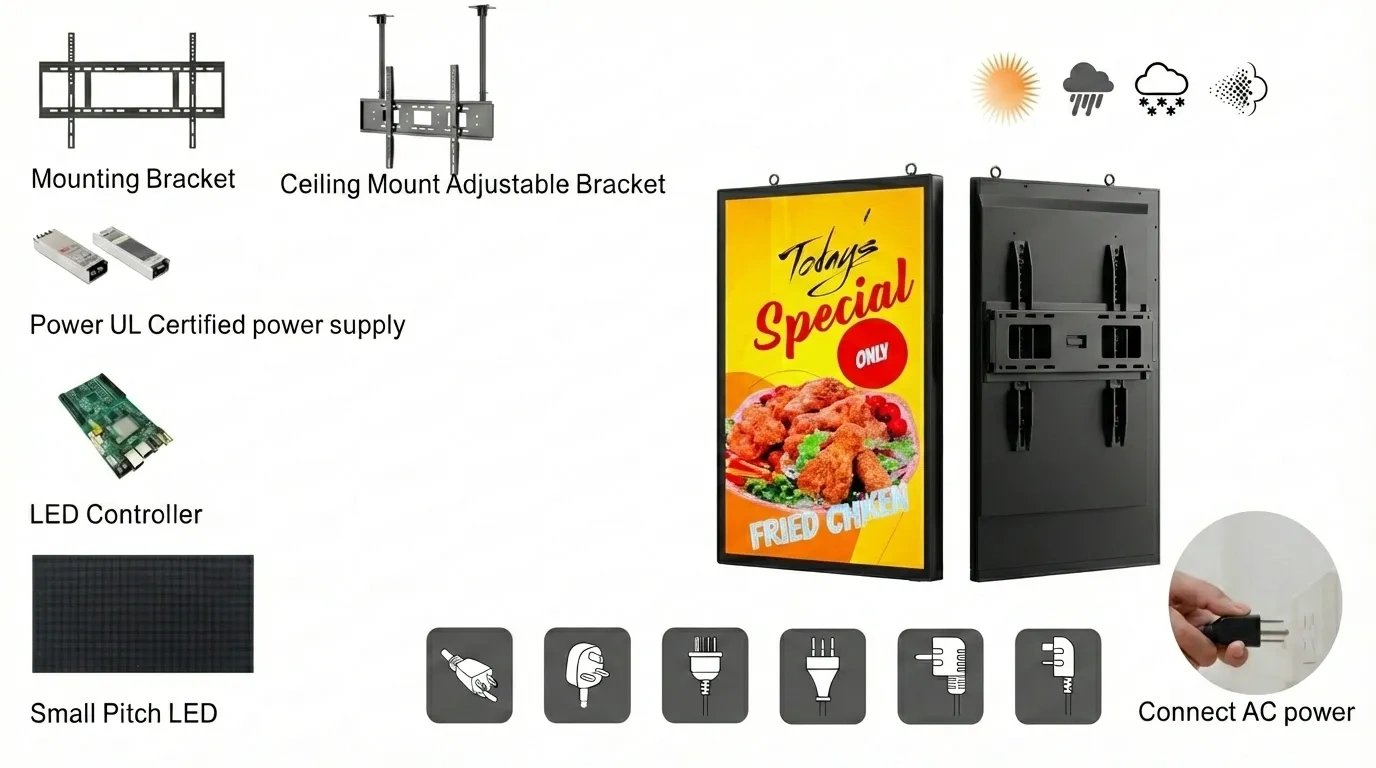

Multi-installation type
1.Wall Mount Full Motion Tilt Swivel LED Bracket offers a relatively simple design. It’s lightweight but durable, and flexible enough to accommodate a wide range of screen sizes and weights up to 400lbs.

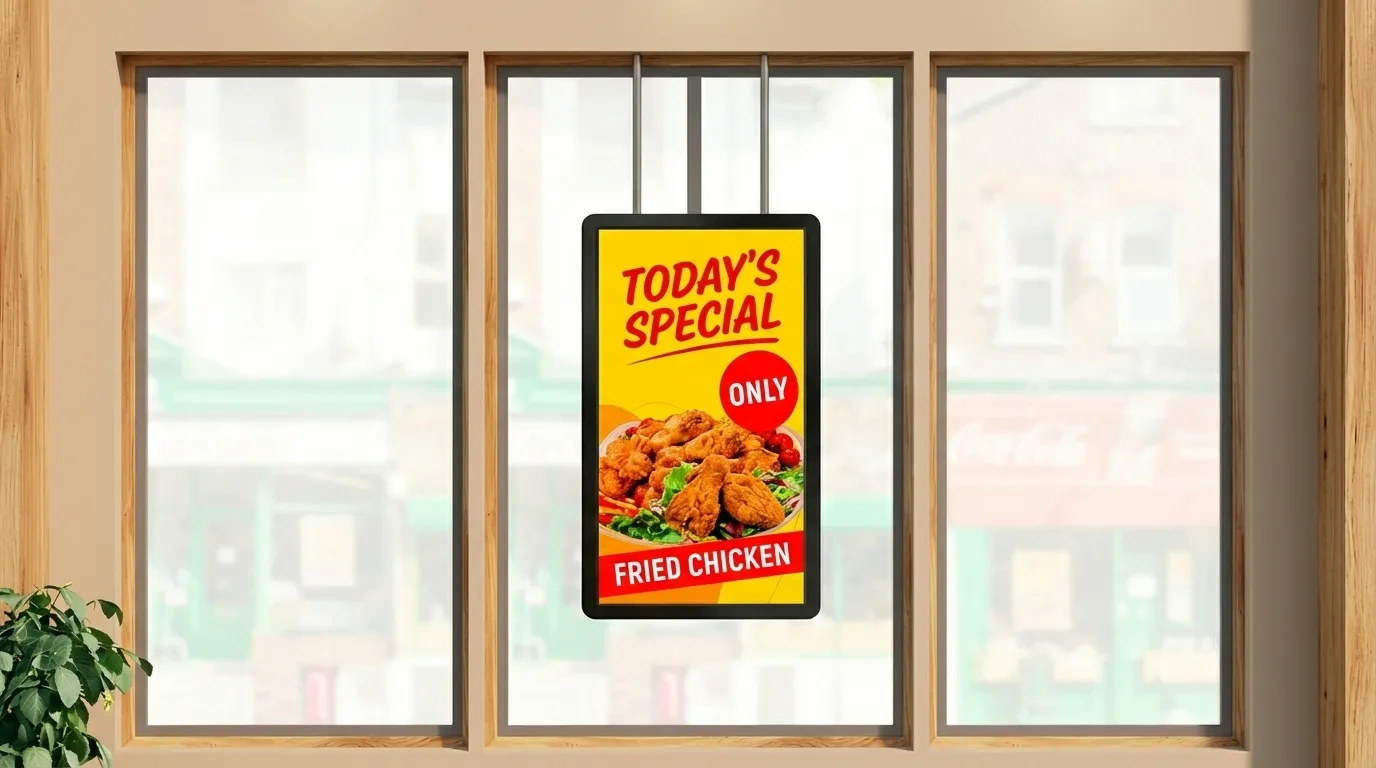

2.The height adjustable ceiling hanging mount is the solution to your limited wall space. Its high-quality steel, strong bearing capacity and scratch-resistant powder finish assure your display is mounted safely.
3.Height Adjustable moving Stand – The mobile display stand can adjust its height. It can be stationary or mobile according to your wishes. High quality steel ensures durability and stability
Communication Options
1.On-site management: Wi-fi connection: the mobile phone or laptop connects to the Wi-fi of the LED display Internet connection: Standard TCP/IP ,Cat 5/6 cable or USB key connect LED sign to your computer, laptop directly.
2.Wireless: POE connection: Expand your network to where there are no power lines or outlets 4G controller: For remote locations without an internet connection, best for controlling outdoor or many signs from far distance

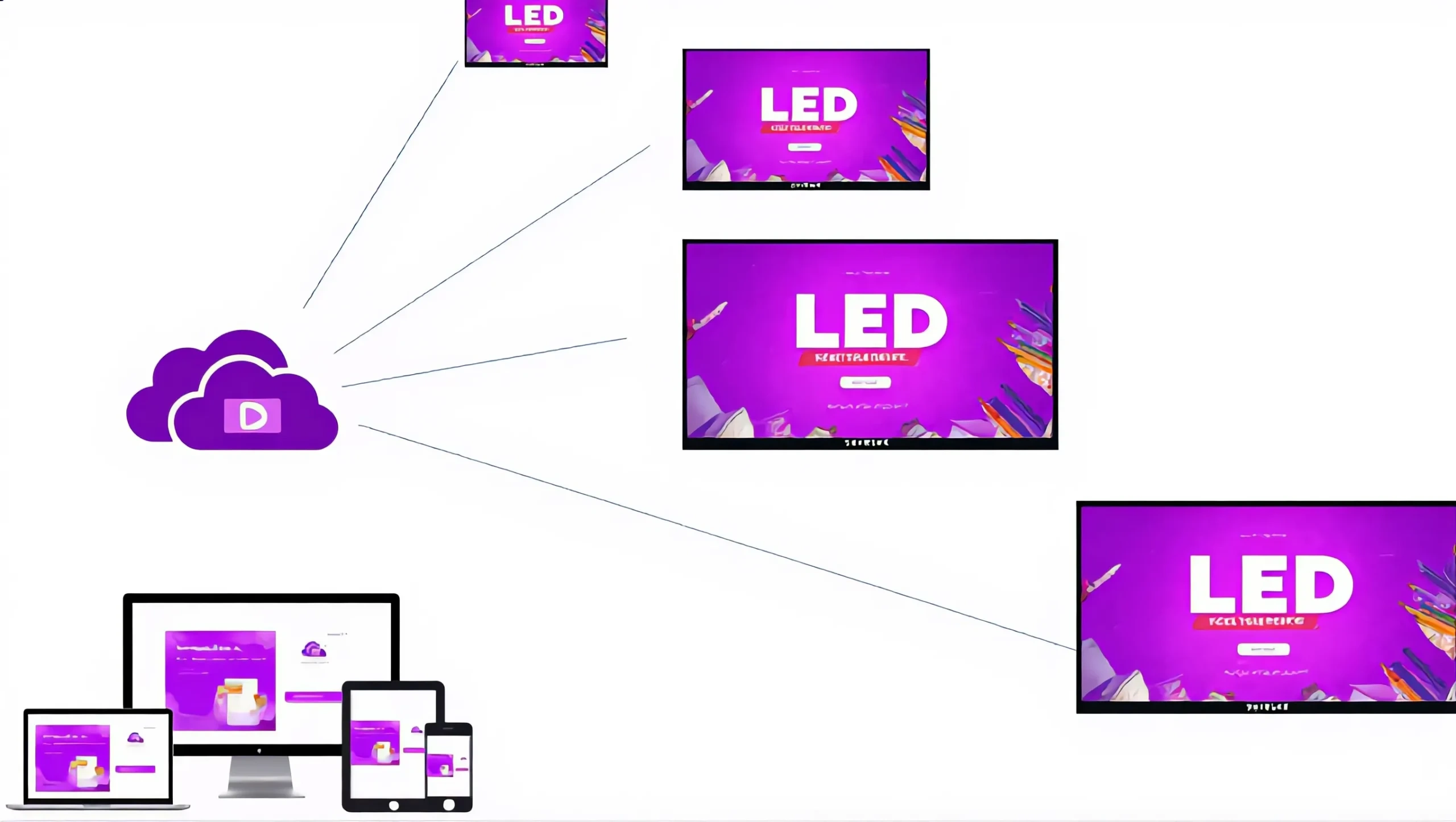

Cloud based Multi-screen control
1, Our LED systems can be controlled and programmed via Cloud.
2, Users can access the Internet through the management computer (PC) and mobile APP, log in to their own account, and can manage the display screen centrally and remotely.
3, For remote locations without an internet connection, we can help build cloud for hundreds of led display with intelligent group management system.
4,All programs for all led display could be uploaded and changed at the same time via cloud. It’s totally wireless and remote.
5, Through the platform, users can upload and schedule content on the LED screens, monitor and analytics the performance of the displays in real-time, and receive alerts if any issues arise.
Edit cool programs, rich, eye-catching
1, Boost your branded marketing and promotions with a beautifully engaging business video.
2, The led screen supports almost all the most usual formats: jpeg, mov, mp4 etc..
3, Many beginner-friendly free online video maker such as Canva, Poster my Wall, Unsplash that helps to creat stunning videos in minutes.
4, Select basic layer image from the available free templates and professional layouts with drag- and – drop feature to design your animated video
5, Easily edit and add elements: add your design elements, designed text or upload media from 3rd party
6, We can help to program your sign, to help you create unique and quality content on the display.
